VO-B3a

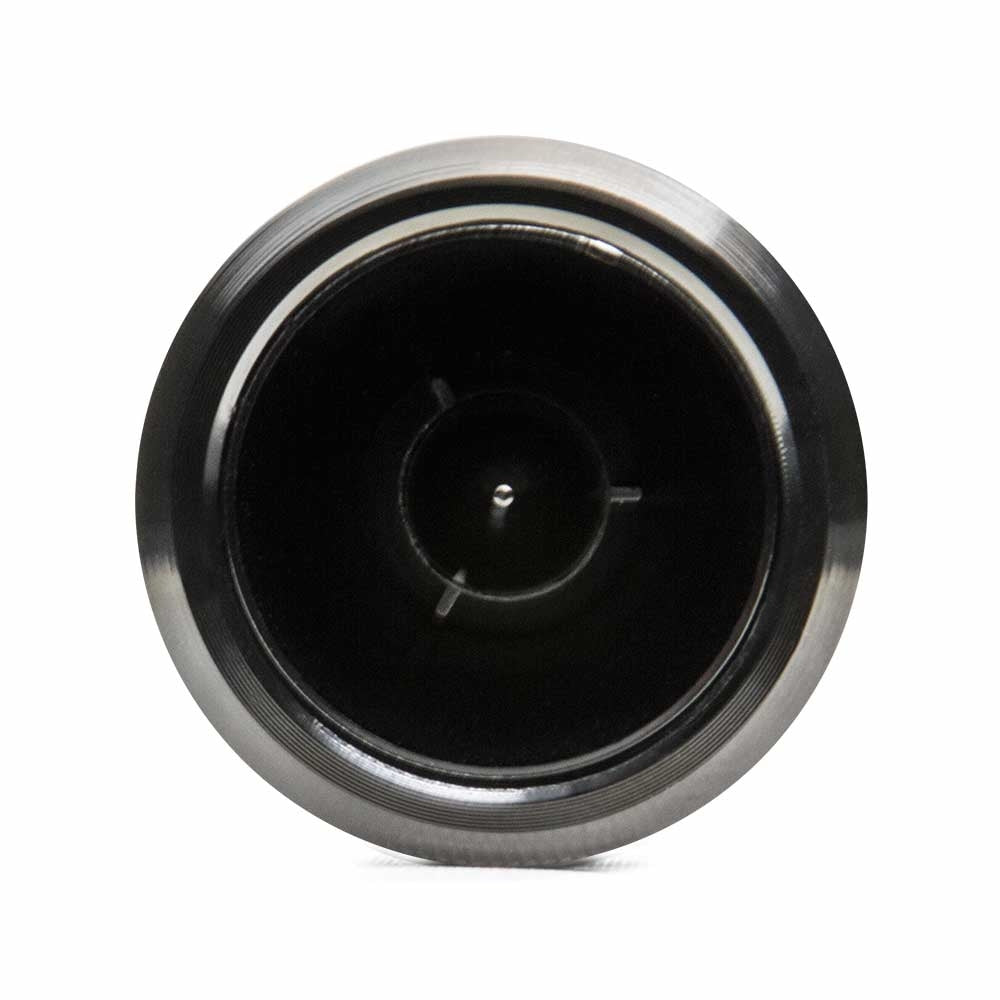

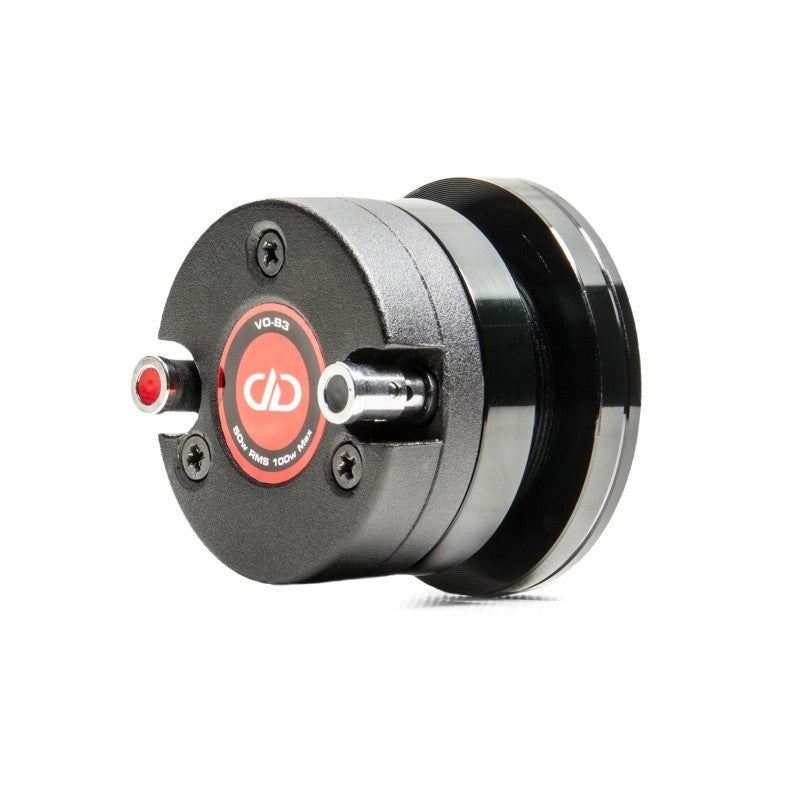

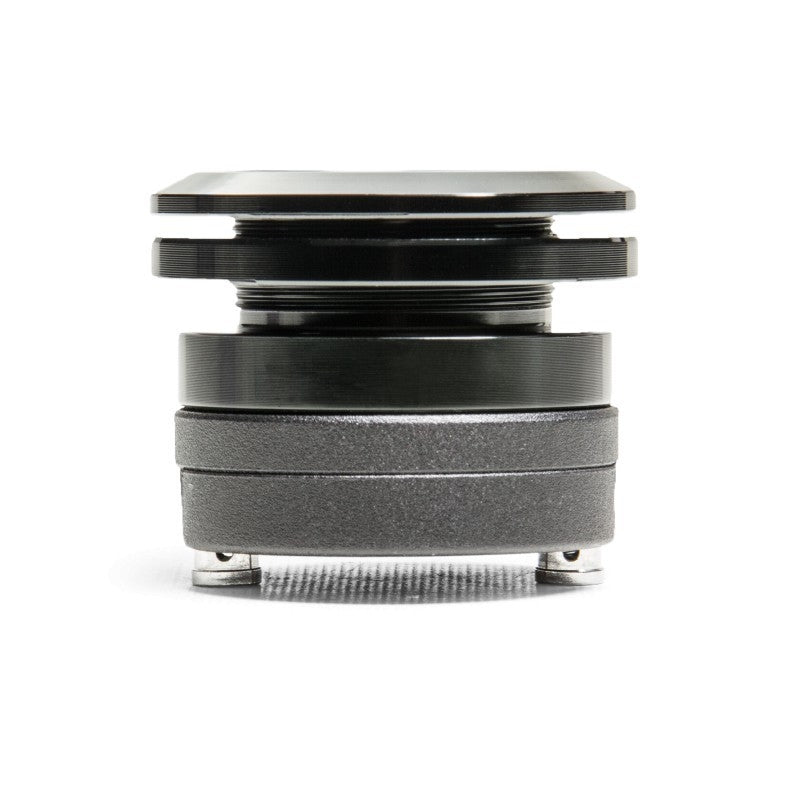

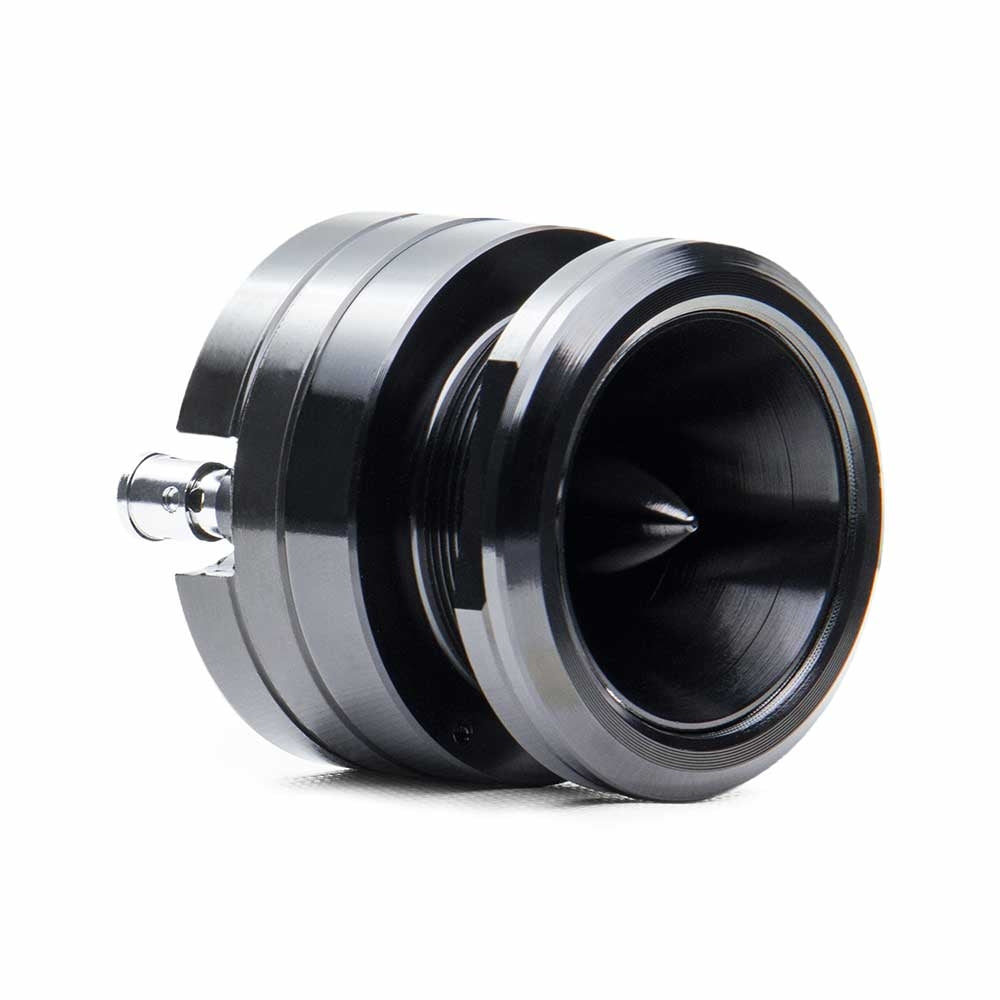

The VO-B3 is truly a PA-Style bullet tweeter designed for the mobile environment. When it comes to PA style products, many companies simply use off the shelf parts and slap their name on it, but that’s not DD’s style. We wanted to make the best sounding, easiest mounting high output tweeter on the market. The VO-B3 custom CNC body is designed to be as short as possible to allow for easy mounting in door panels and motorcycle fairings. We also opened up the horn body up to 110 degrees. So, compared to similarly styled tweeters, you get a wider field of sound in close proximity to the tweeter. Another unique feature of the VO-B3 is its dual mounting options. You have the option to flush mount with the trim bezel and back nut or for more space constrained installs you can top mount using the machined screw holes in the tweeter body. The B3 comes with an 4 Ohm diaphragm, but optional 8 Ohm diaphragms are available.

• Driver Size - 1 In.
• Power Band - 50-100 Watts
• VCD - 1 In.
• Impedance S4
• Frequency Response - Hz 3k-20k
• dBSPL 106dB
• Cutout Diameter -1.71 In.
• Mounting Depth - 1.34 In.
