DD Audio
SC-6a
SC-6a
Regular price
$89.99 USD
Regular price
Sale price
$89.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
6 CHANNEL LINE OUTPUT SIGNAL CONVERTER

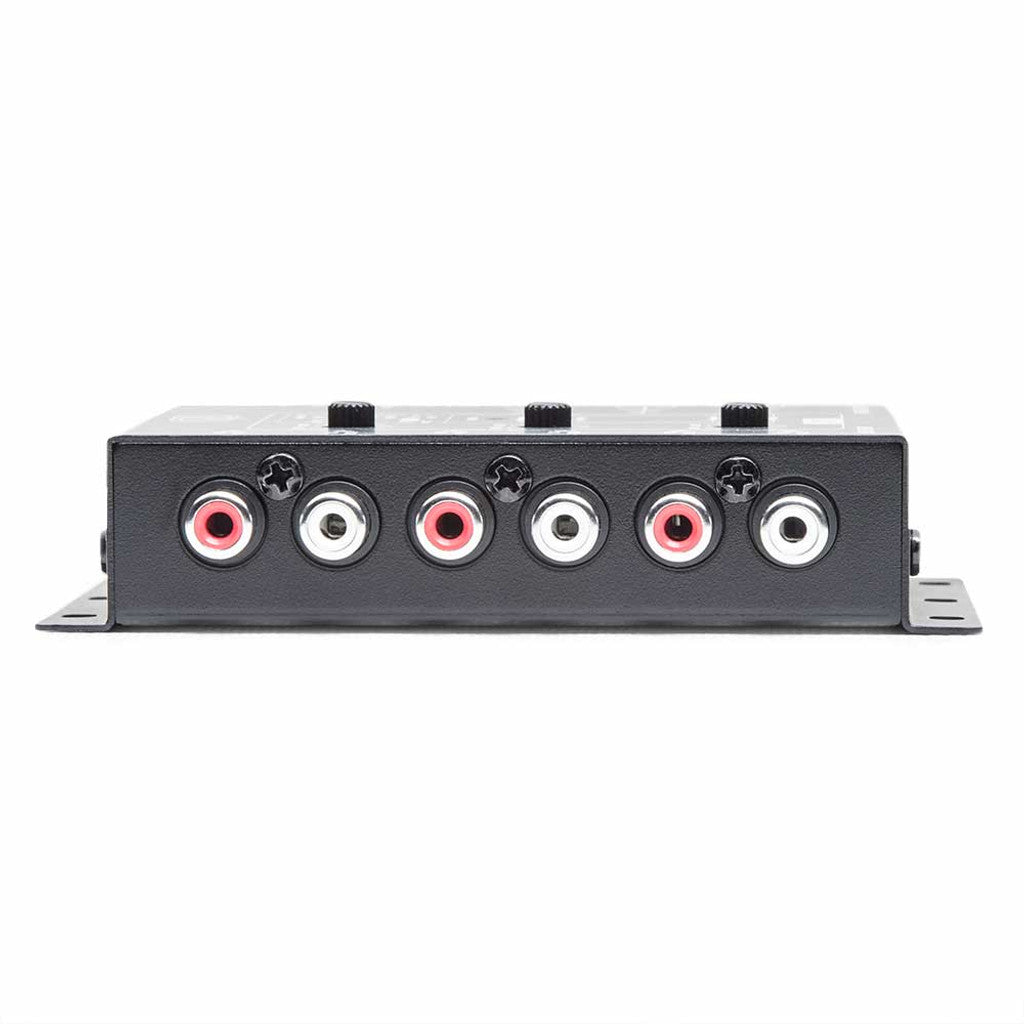

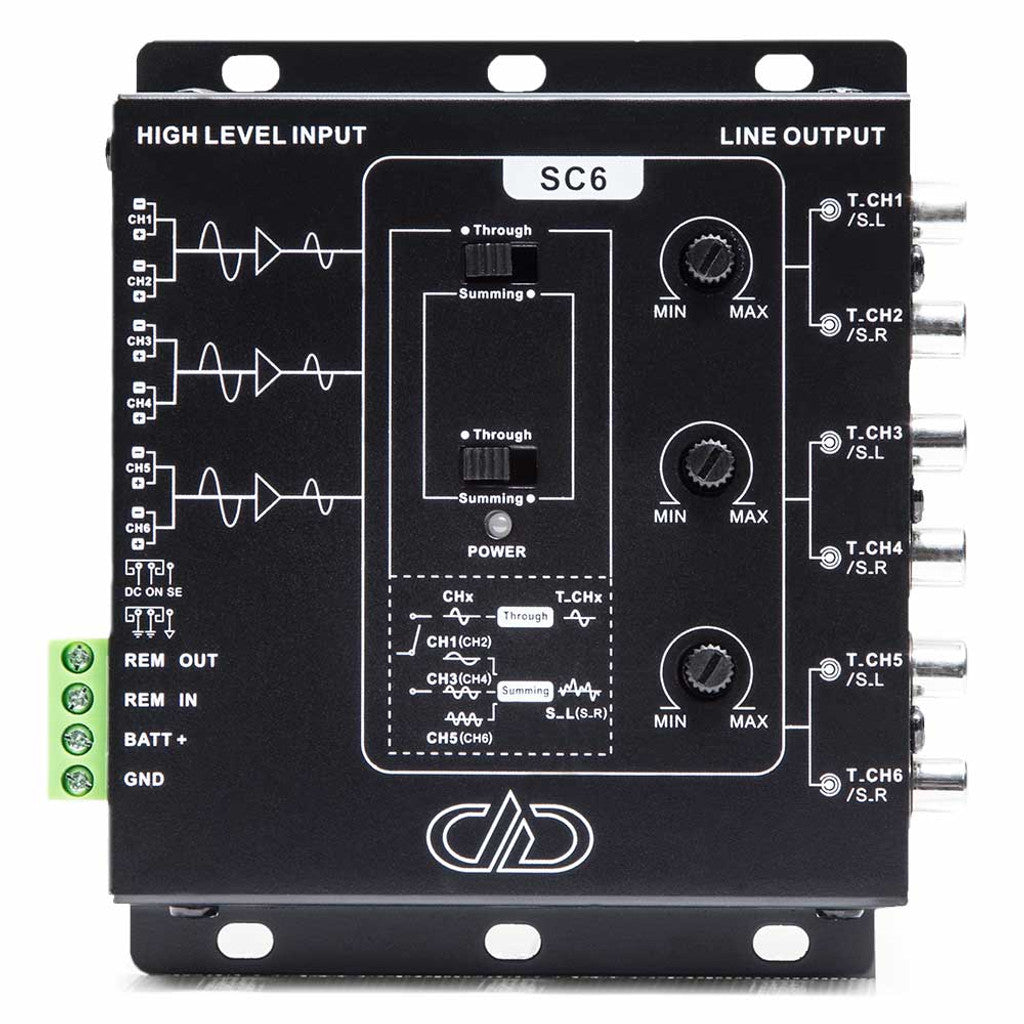

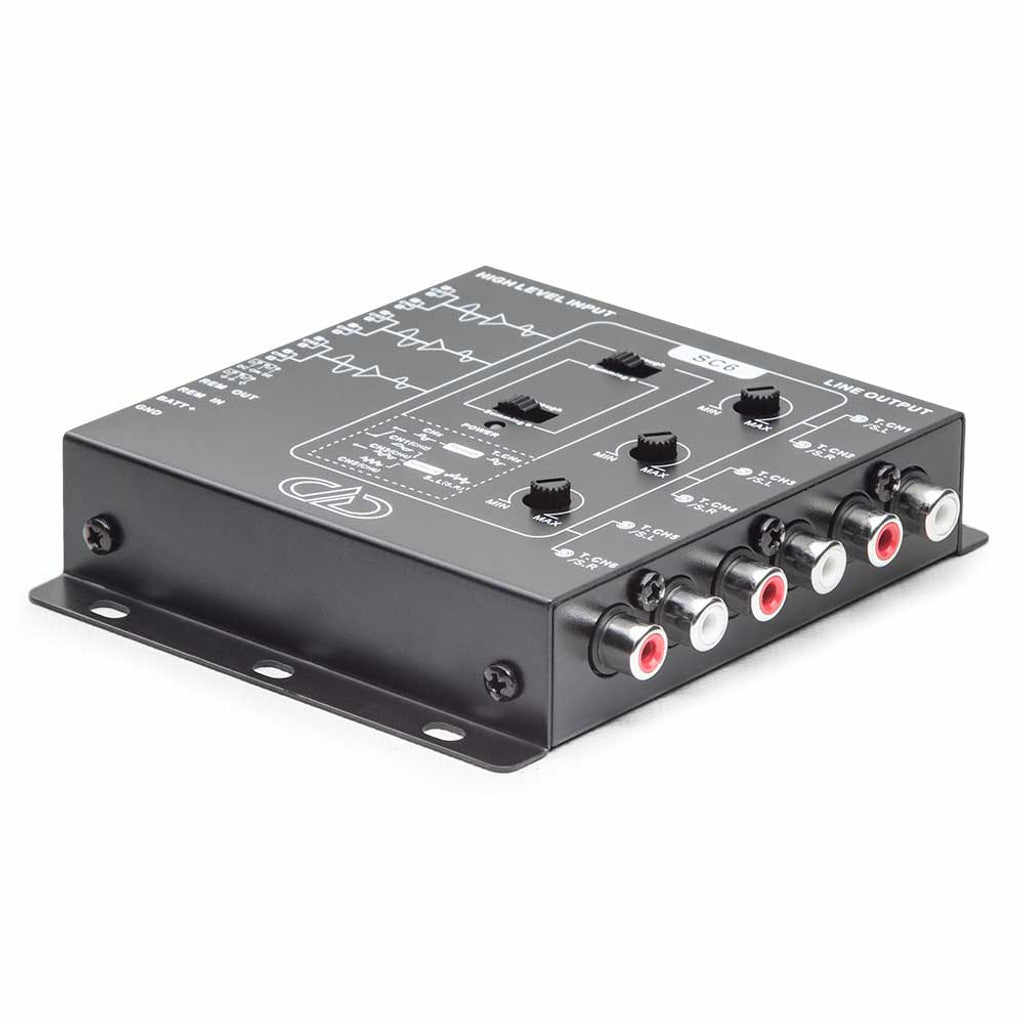

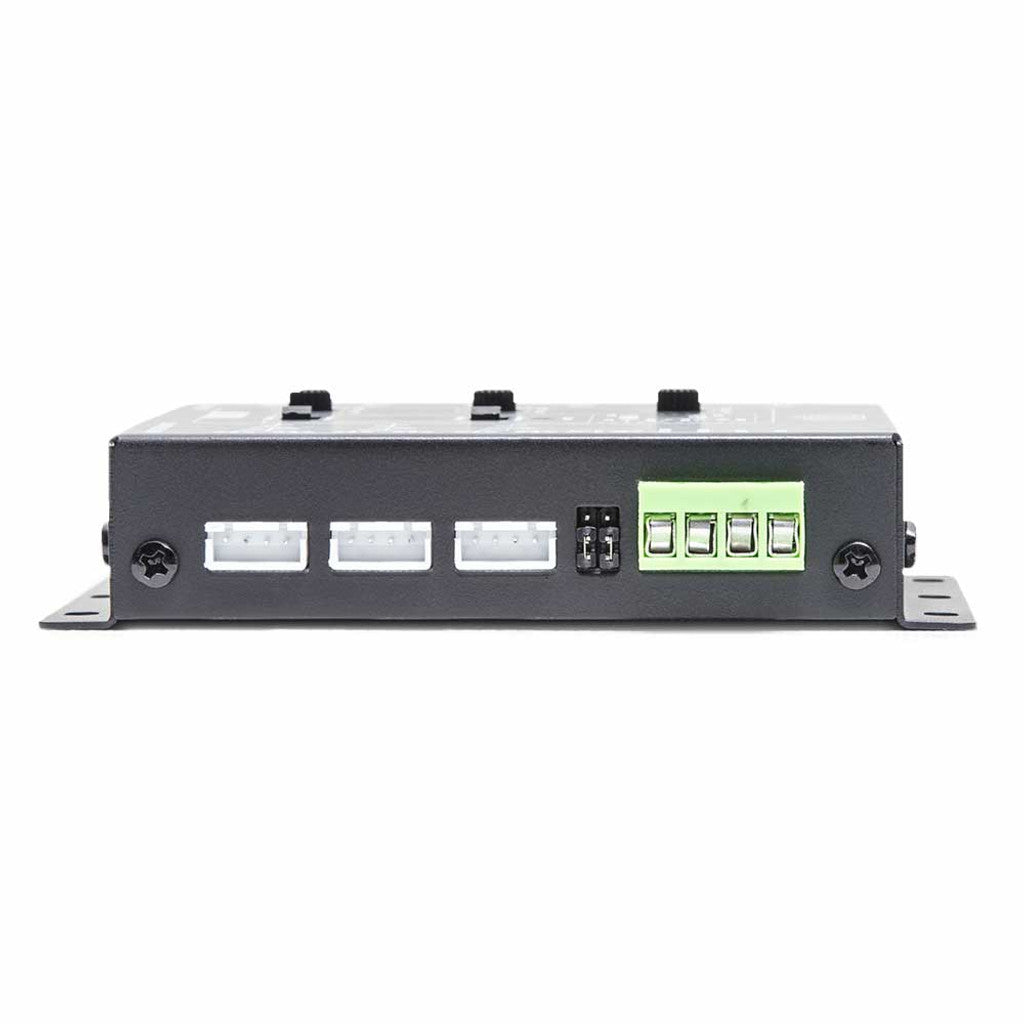

The SC6 is a premium quality 6 channel line output signal converter. Installers will appreciate the metal chassis and easy access to features such as input channel summing, turn on selection, and grounding selection. To allow for greater OEM interface compatibility, the SC6’s input impedance allows it to integrate with most load detect systems without the need for external resistors.
Active signal processors capture the audio signal before it gets to the amplifier allowing you to modify the waveform to meet your needs. They require external power to operate, but provide a higher degree of adjustability than most amplifier preamps or passive (non powered) devices.
Features
-
Input Summing
-
Differential-Balanced Inputs
-
Independent Variable Gains
-
Selectable Ground Isolation
-
Signal Sense Turn on (RCA and High Level)
-
Double Power Supply
-
Detachable Power and Speaker Input Terminals
-
FR4 PCB
-
Aluminum Chassis
-
OEM Load Detect Compatible
SC6: 6 Channel Active Pre-Amp Signal Converter
| Operating Voltage: | 10 - 16 |
| Input Channel(s): | 6 x Speaker-Level |
| Output Channel(s): | 6 x Low-Level RCA |
| Max Current Draw (Amps): | 110mA |
| High-Level Input Voltage Sensitivity: | 2 - 20 |
| RCA Output Voltage: | 10 |
| RCA Input Impedance: | 180 |
| RCA Input S/N: | > 95dB |
| Frequency Response (Hz): | 10Hz~50Kz |
| Remote Out Current: | 12V >500mA |
| Dimensions (Inches): | 3.8 x 4.6 x 1 |
| Dimensions (MM): | 98 x 119 x 25 |
| Shipping Weight (Lbs): | 1 |
