RS-375

4-button 1-way remote start and keyless entry system

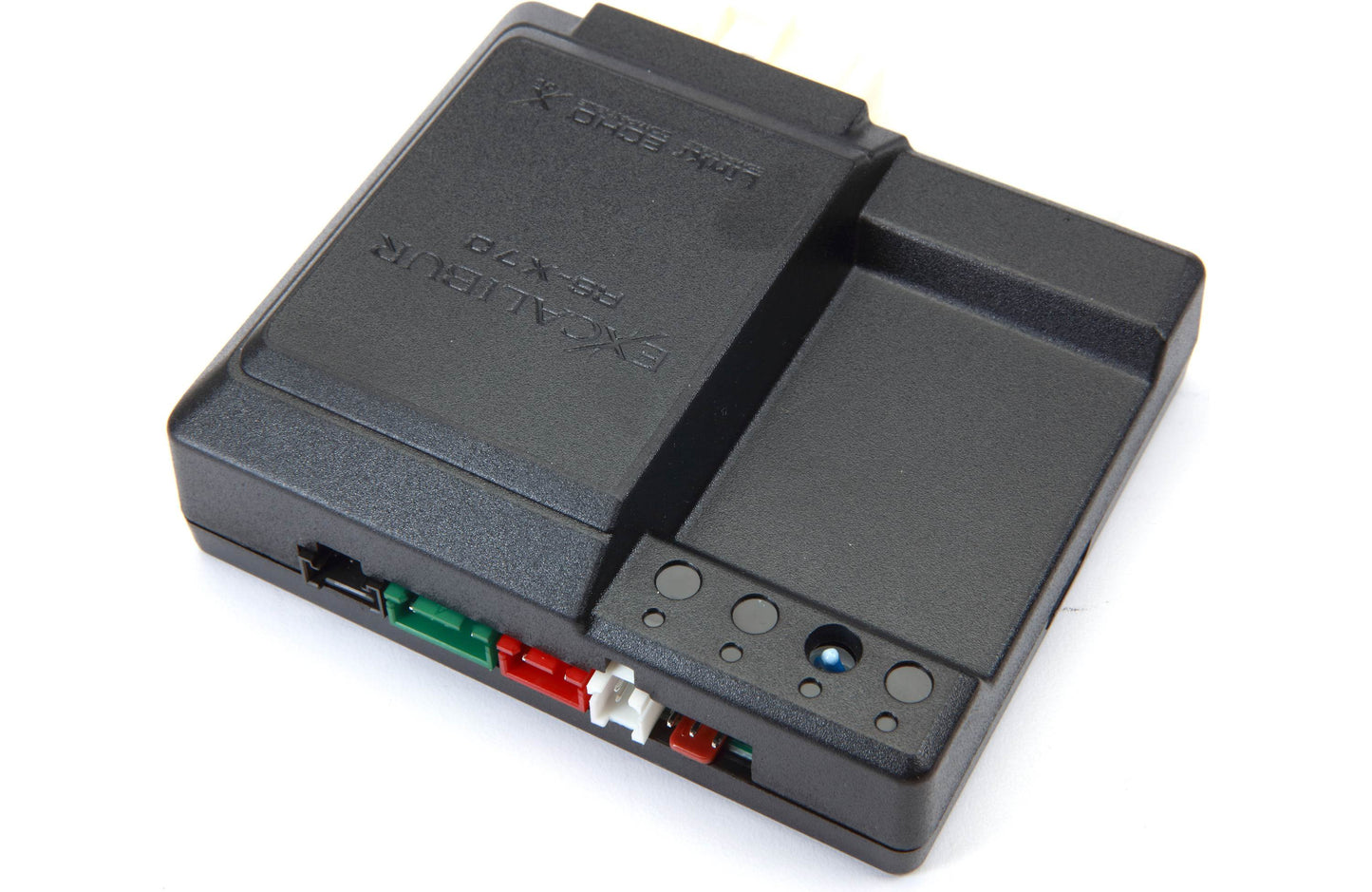

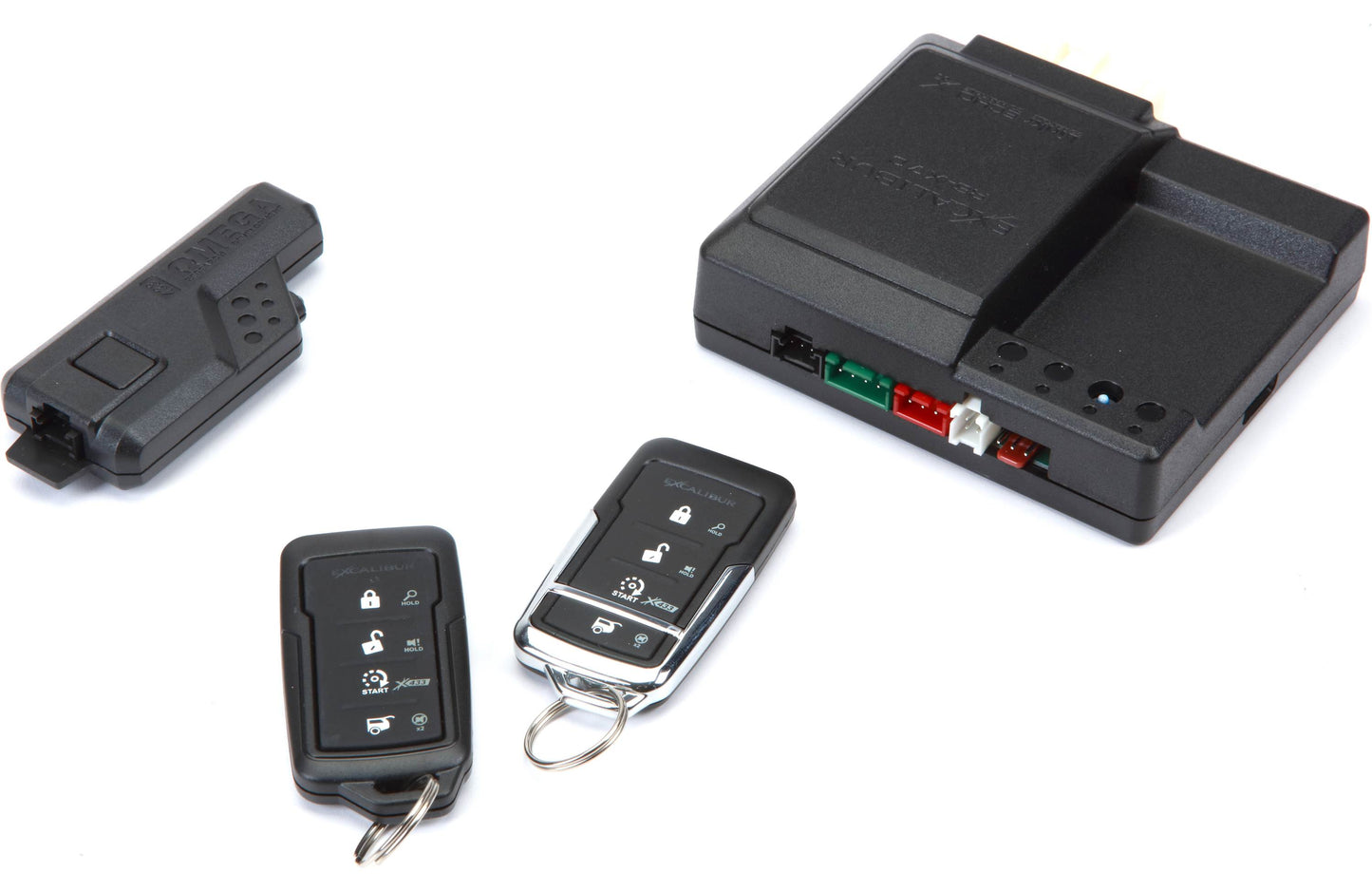

Overview: The Excalibur (Omega) RS-375 is a remote start & security system designed to be installed on most any vehicle and provide state-of-the-art vehicle security and convenience features. The RS-375 lets you control your vehicle from up to 3000' away, while built-in remote start capability will keep your vehicle warm in the winter and cool in the summer.

Immobilizer Bypass: The RS-375 does not include an immobilizer bypass circuit or module, which most modern vehicles will require, and must be purchased separately. The remote start system is compatible with most immobilizer bypass interfaces, such as the Omegalink OL-MDB-ALL data integration module (sold separately), supporting both DBI and iDatalink protocols.

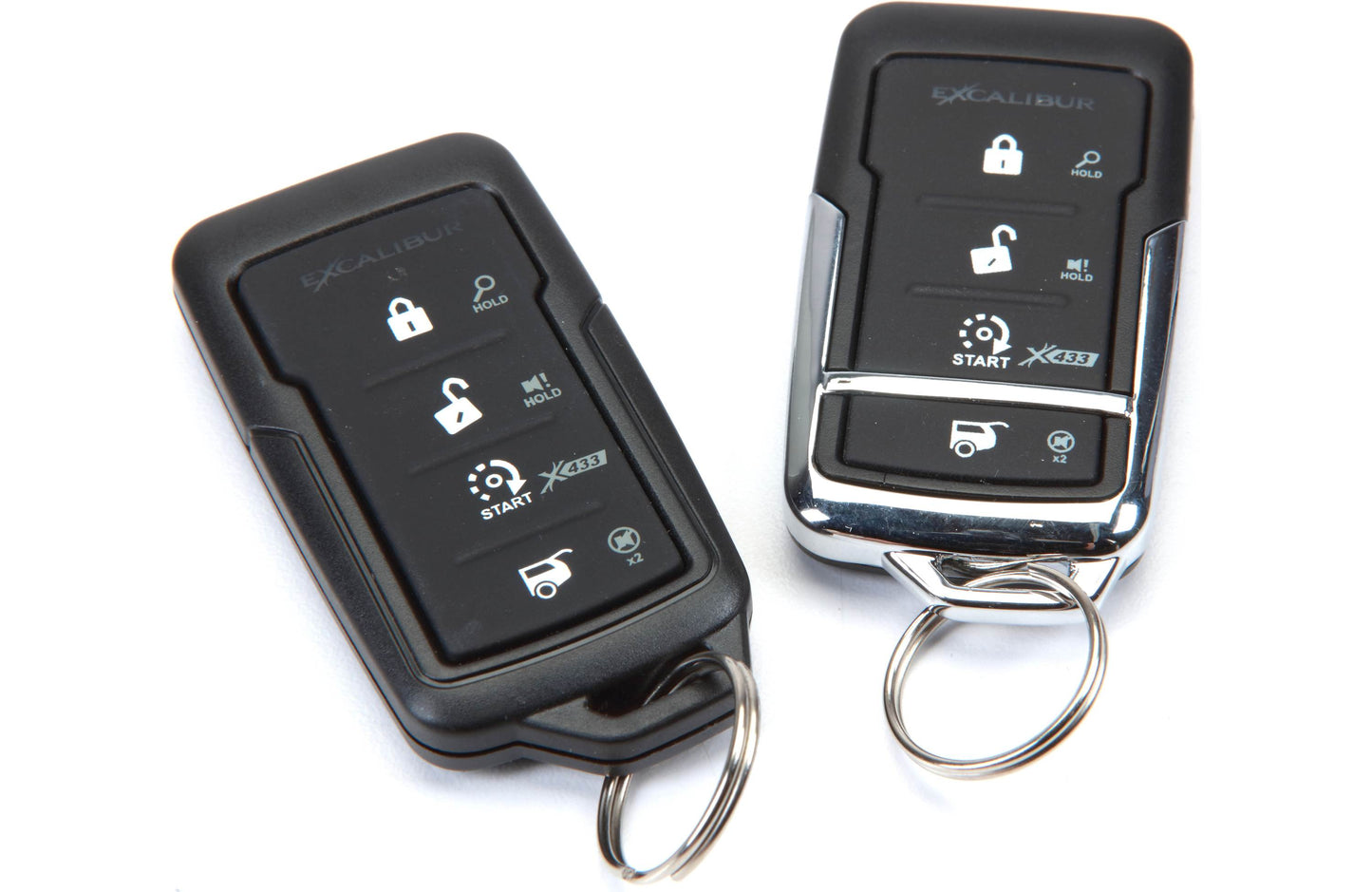

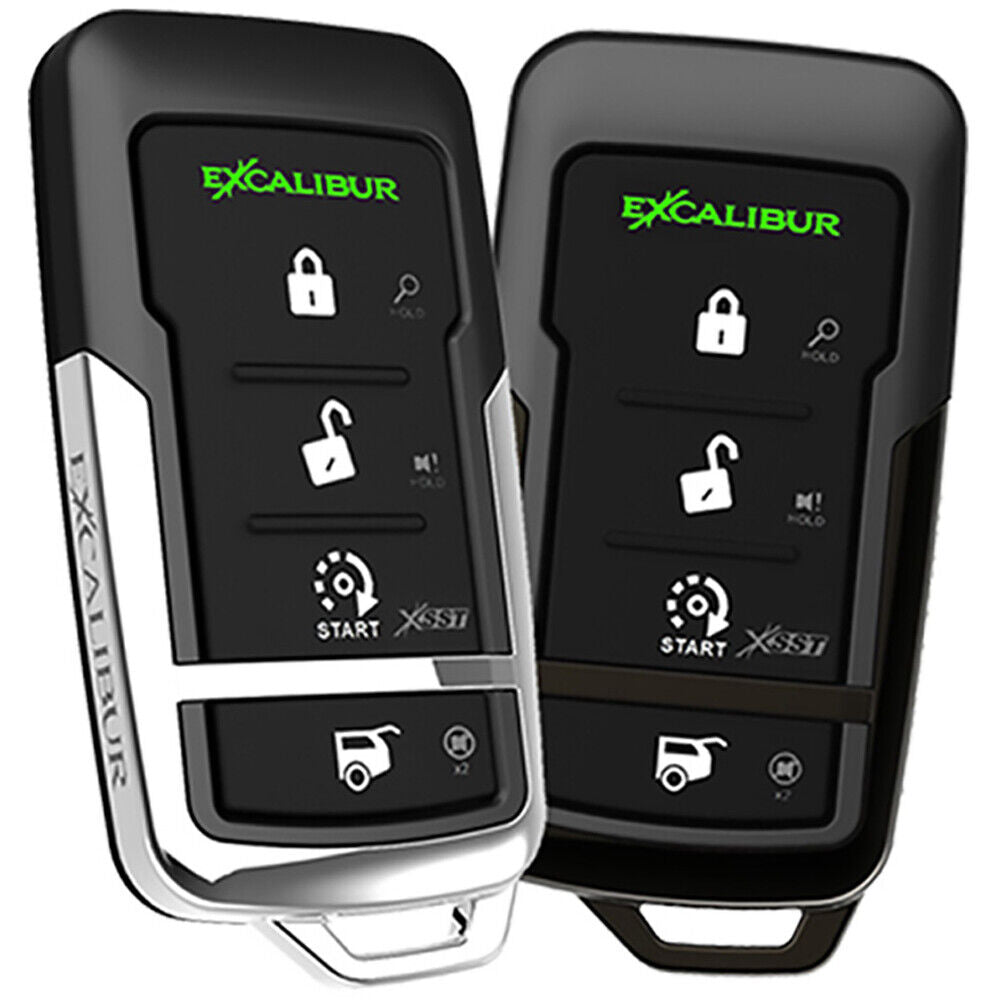

Remote Controls: The RS-375 includes two 4-button remote controls, both 1-way, for operating the remote start system with up to 3000' of operational range. Both remotes let you activate up to 13 functions and feature an Excalibur logo LED that lights when any button is pressed. The included remote controls come pre-programmed to operate out of the box, but replacement or additional remotes can easily be programmed to work with the system.

• Remote Functions: Both remotes can be used to activate the following functions: Remote Start, Arm/Lock, Disarm/Unlock, Trunk Release, Silent Arm/Disarm, Sensor Bypass, Low Voltage & High/Low Temperature Auto Start, Panic, Remote Valet, and activation of up to 4 Auxiliary Functions (vehicle dependent).
• Auxiliary Functions 1-4: Up to 4 Auxiliary Functions are provided, which are designed to operate extra vehicle functions like automatic sliding doors, or a motorized sunroof. These are "virtual" outputs, with no physical wiring provided, with functions determined when the system is integrated into the vehicle's data network during the Vehicle Learn procedure. After Vehicle Learn, each Auxiliary Function can be triggered to determine which vehicle function, if any, is assigned.

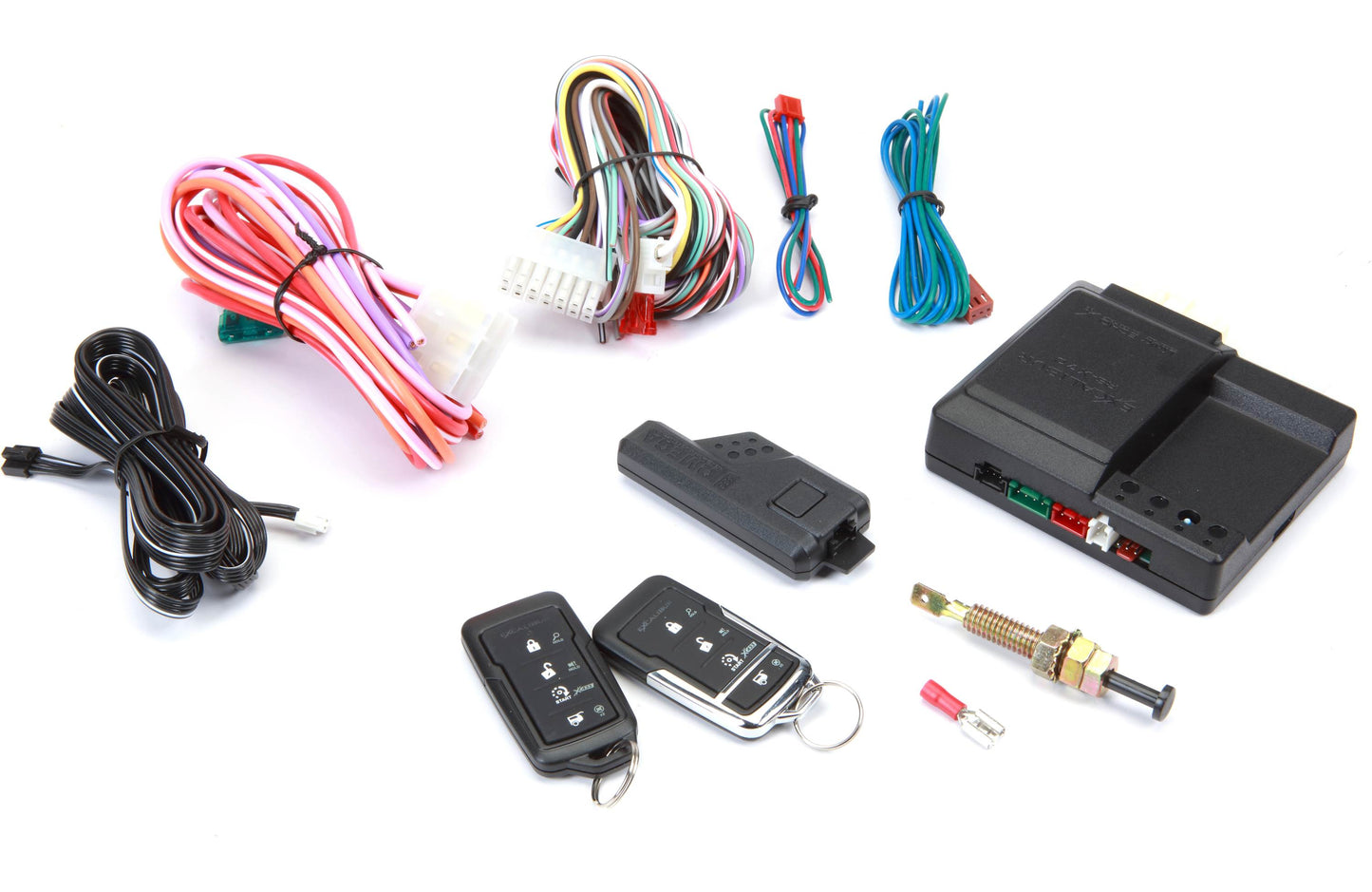

Included Harnesses: The RS-375 includes 4 harnesses for interfacing the vehicle's wiring:

• 6-Pin High Current: Includes wiring for remote starting the vehicle such as Ignition, Start, and Accessory.
• 3-Pin Remote Start: Includes remote start Status outputs.
• 3-Pin Door Lock/Unlock: Provides lock and unlock output wires, each with a 250ma ground (-) output.
