Rockford Fosgate

P500X1bd

P500X1bd

$389.99 USD
$389.99 USD
Sale Sold out
Shipping calculated at checkout.

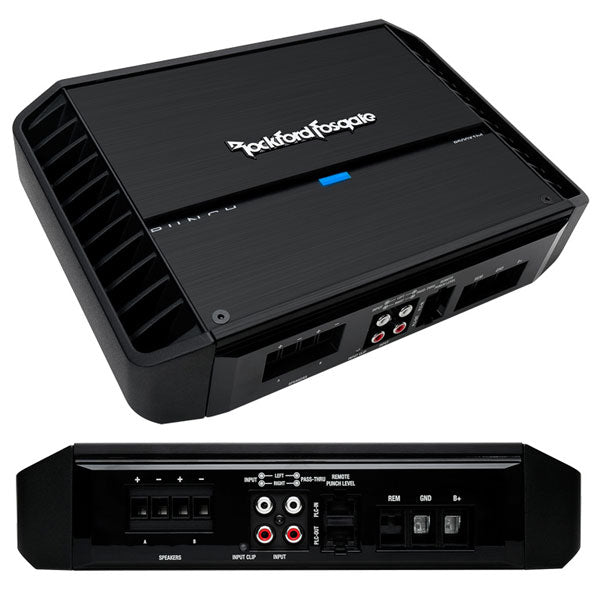

The Rockford Fosgate Punch P500X1bd is a mono amplifier capable of 500 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently over traditional amps, and its frequency response allows it to be optimized for subwoofers.
  • High level input capable with Auto Turn-On circuit
  • Features C.L.E.A.N. Set-up
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • RCA pass-thru outputs
  • 12dB/octave Butterworth crossover
  • On-board Punch EQ with +18dB boost @ 45Hz.
  • Muted turn on
  • Stealth top mounted control panel
  • Cast aluminum heatsink
  • Short circuit protection
  • Over current protection
  • Infrasonic filter
Circuity
Class BD
Rated Power @ 4 Ohms
150W x 1
Rated Power @ 2 Ohms
300W x 1
Rated Power @ 1 Ohms
500W x 1
Dynamic Power @ 4 Ohms
224W x 1
Dynamic Power @ 2 Ohms
410W x 1
Dynamic Power @ 1 Ohms
787W x 1
Frequency Response
20 Hz - 20 kHz
Inputs
High & Low Level
Filters
Low Pass
Crossovers
50 - 250 Hz @ 12 dB/Octave
Infrasonic Filter
28Hz @ 12dB/Octave
Bass Knob
PLC2 (Sold Separately)
LED Clipping Indicators
Yes
Recommended Power Wire
4 AWG
Recommended Fuse
80 A
Max Current Draw
70A
Dimensions
2.38" x 7.76" x 11.03"
