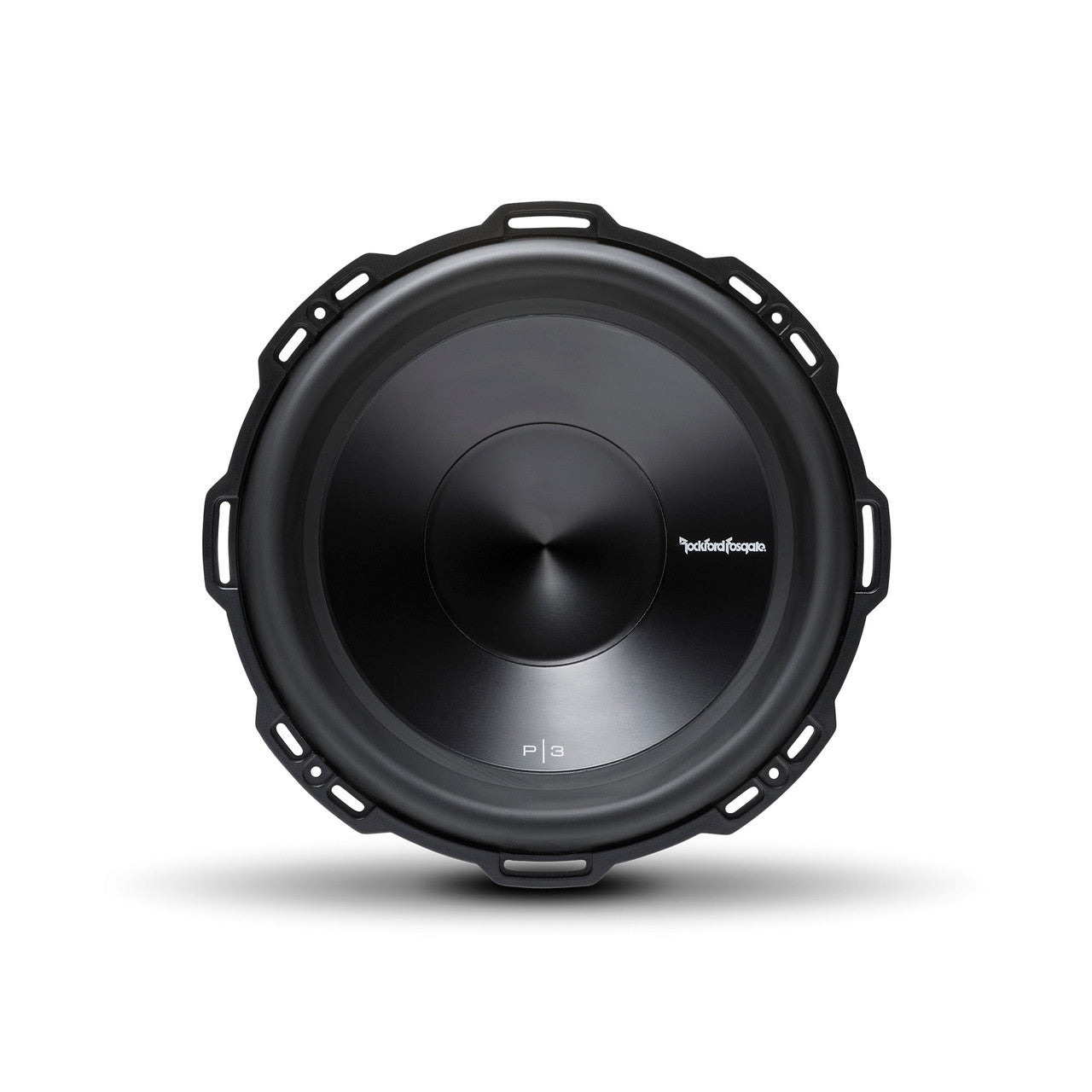

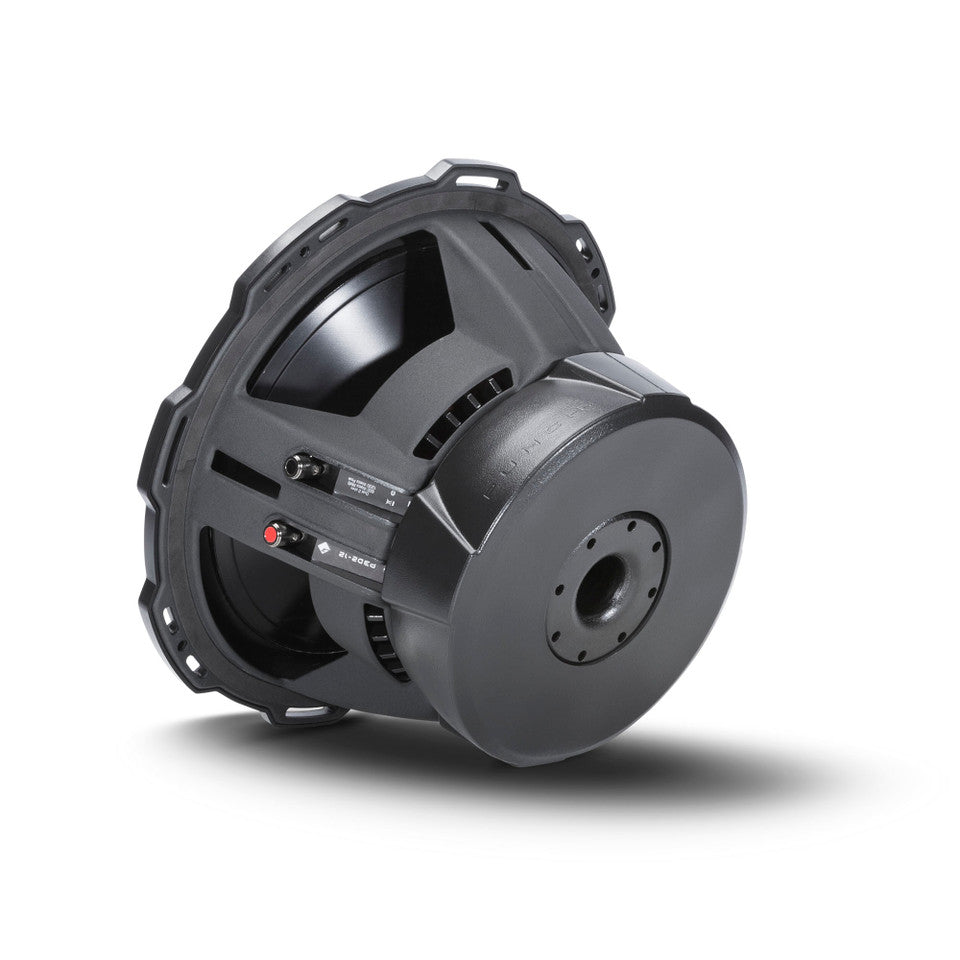

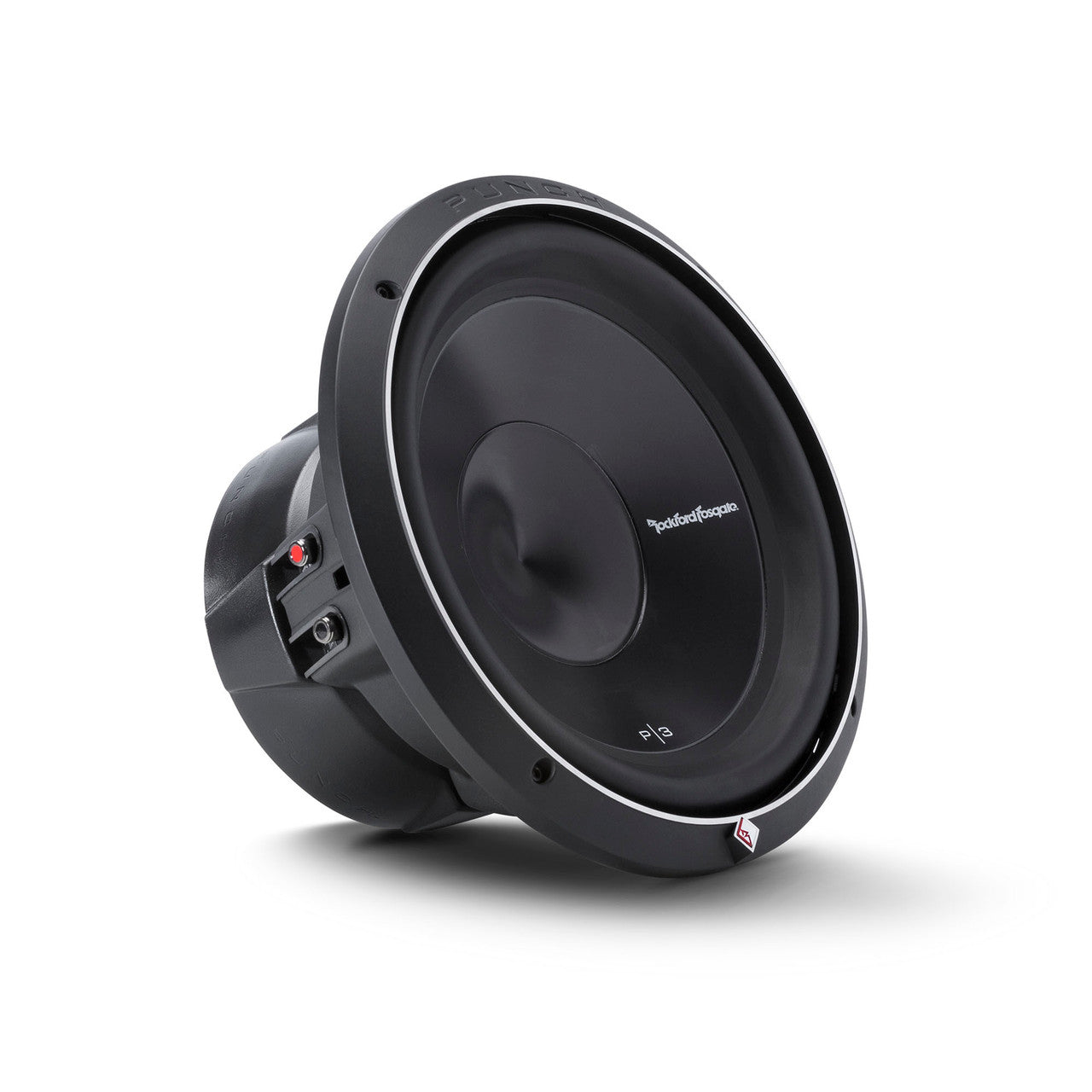

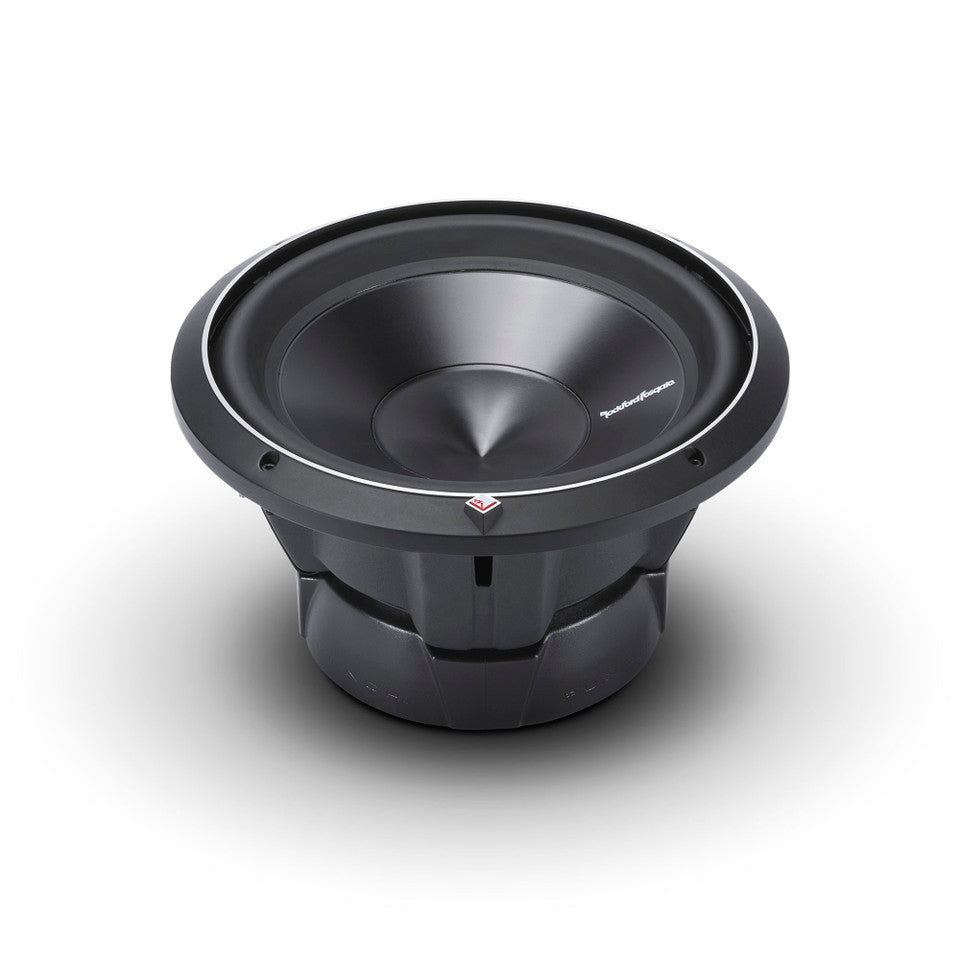

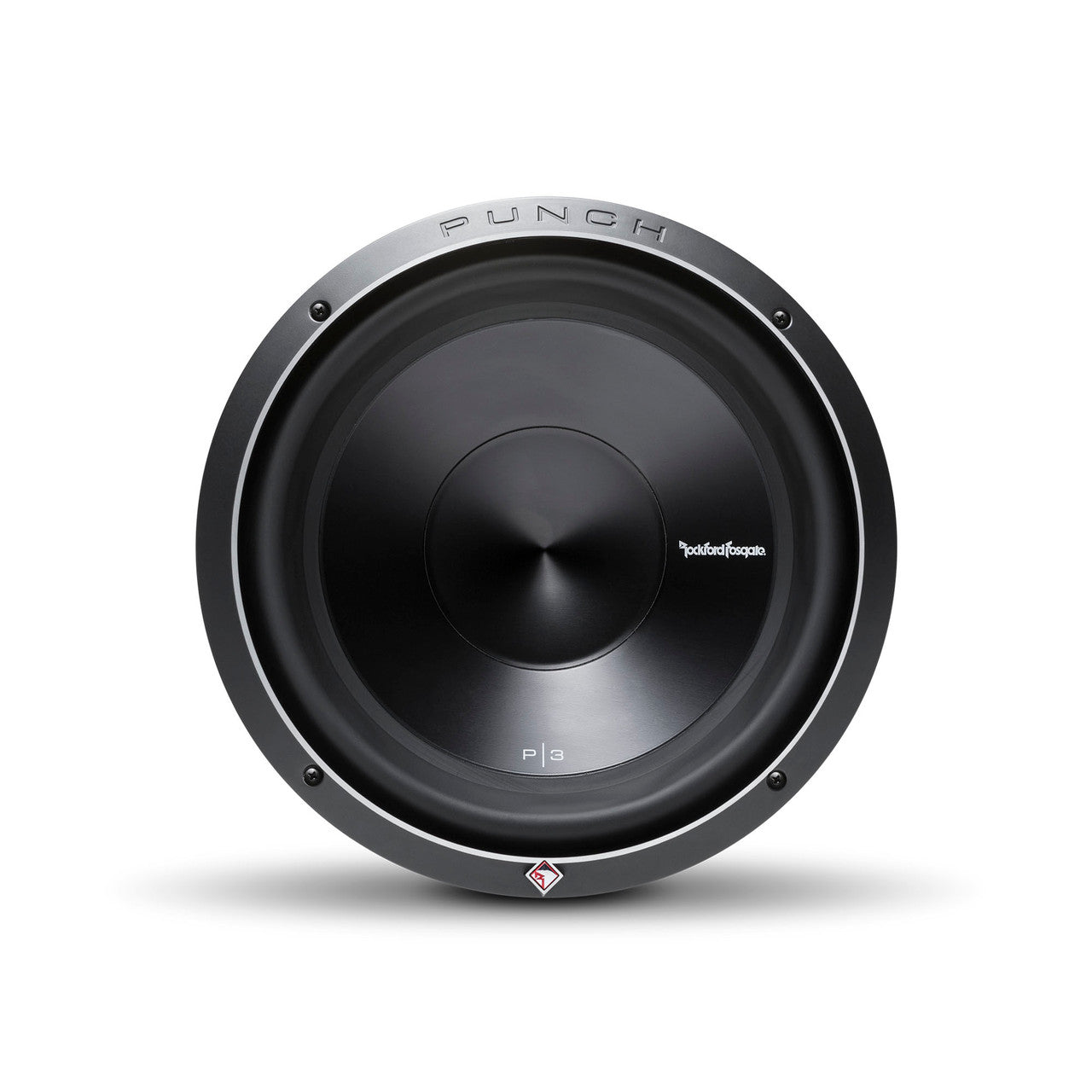

P3D4-12

The P3D4-12 12-inch subwoofer is Rockford Fosgate's best performing Punch series subwoofer. The P3 subwoofers now feature anodized aluminum cones and dustcaps along with unique spider venting to keep the motor cooler than previous versions. These feature VAST technology to increase surface cone area up to 25% and a FlexFit basket for extreme installations. Best of all, a new hybrid stamp-cast basket offers the best of both worlds by providing super strength while minimizing weight and resonance.

• Custom 10-AWG nickel plated push terminals
• Dual linear spider with embedded 16 AWG tinsel leads
• Extended pole piece and bumped vented backplate
• High-temp voice coil with spun-laced Nomex® re-inforcement collar
• Anodized aluminum cone and dustcap
• Protective PVC textured magnet cover
• Diamond cut cast aluminum trim ring with optional grille
• StampCast basket with integrated spider venting
• 1 Year Warranty

• Diameter : 12 Inch
• Sensitivity : 85 dB
• Impedance : 4 Ohm
• Frequency Response : 27-250 Hz
• Peak Power Handling : 1200 Watts
• Top Mount Depth : 6-11/16 Inches
• Shallow Mount : No
• Number of Voice Coils : Dual
• Suggested Sealed Box Volume : 1.02 Cubic ft.
• Suggested Ported Box Volume : 1.79 Cubic ft.
• RMS Power Handling : 600 Watts
