AudioControl
LC1i
LC1i
Regular price
$89.99 USD
Regular price
Sale price
$89.99 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

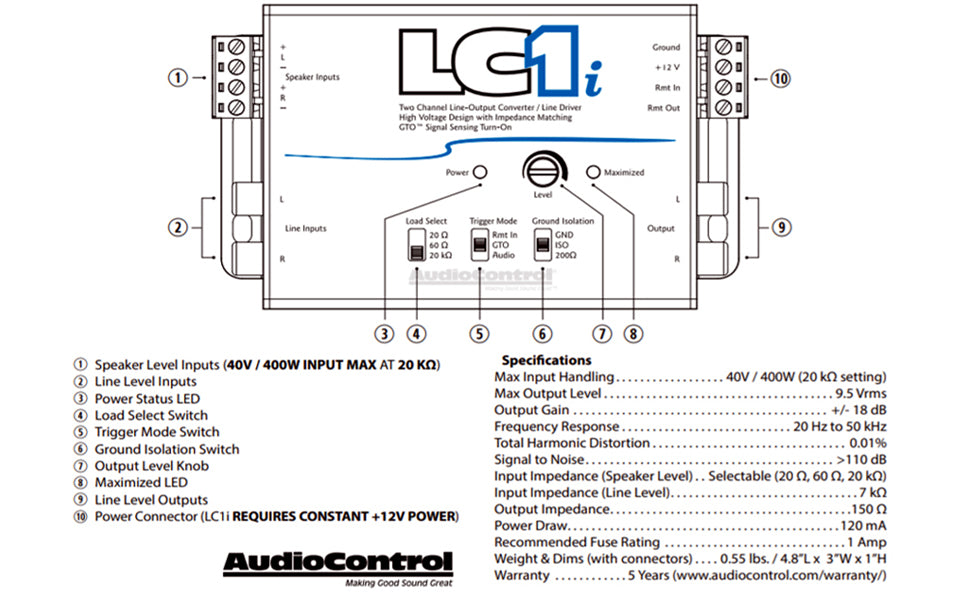

AudioControl - 2-Channel Active Line Output Converter and Line Driver
Easily add an aftermarket amplifier to your vehicle’s factory audio system with this 2-Channel Active Line Output Converter and Line Driver by AudioControl. The LC1i converts speaker-level (high-level) audio signals to RCA preamp (low-level) signals so you can install an aftermarket amplifier without replacing your factory radio. This two-channel line output converter and line driver can also be used to retain your vehicle’s OEM amplified audio system when replacing your factory radio.
| Speaker Level Input: | 1 (2 channels) |
| Maximum Speaker Level Input: | 40 Vrms / 400 W (20kΩ setting) |
| Speaker Level Input Impedance: | (Selectable) 20Ω, 60Ω, 20kΩ |
| Line Level Input: | 1 (2 channels) |
| Line Level Input Impedance: | 7kΩ |
| Preamp Outputs: | 1 (2 channels) |
| Maximum Output Level: | 9.5Vrms/13V peak |
| Output Gain: | +/- 12 dB |
| Output Impedance: | 150Ω |
| Total Harmonic Distortion: | 0.01% |
| Signal to Noise: | >110 dB |
| Frequency Response: | 20 Hz – 50 kHz ±1 dB |
| Control: | Remote In / GTO Signal Sense / Audio Sense & 12VDC Remote Out (always active when unit is on) |
| Current Draw: | 120 mA |
| Recommended Fuse Rating: | 1 A |
| Dimensions: | 4.8″L x 3″D x 1″H (including speaker connectors) & Weight: 0.55 lbs. (0.25 kg) |
