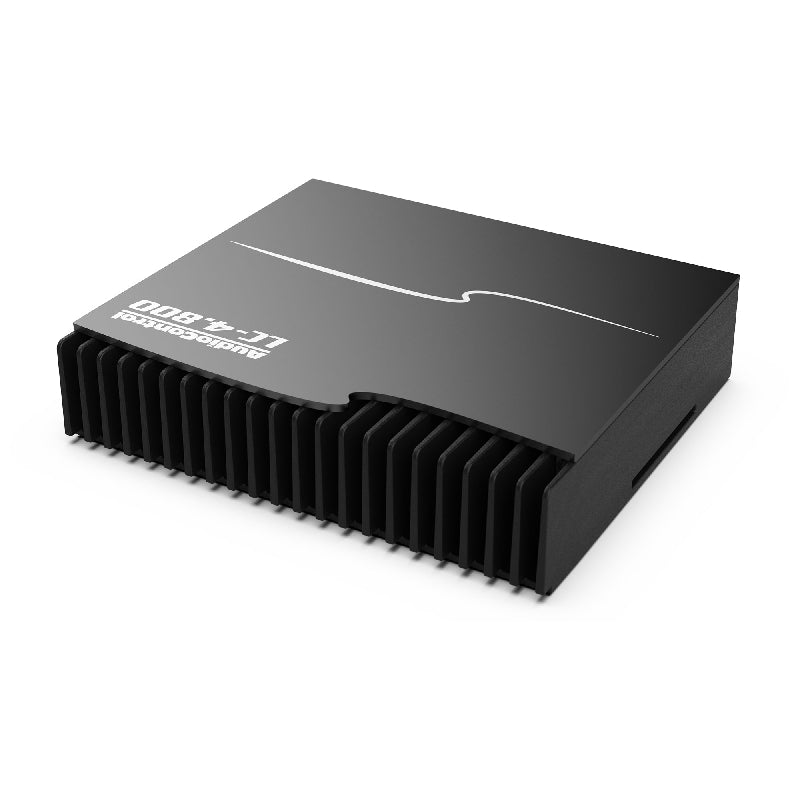

LC-4.800

Speaker-Level Inputs

Featuring OEM integration friendly features such as channel summing and our patented AccuBASS®, AudioControl LC series multichannel amplifiers have changed the game in OEM integration, offering flexible crossovers, user friendly signal routing and control. Spend less time on the install and more time listening to music as it was meant to be heard.

• RMS Power Rating:
• 4 Ohm: 125 watts x 4 chan.
• 2 Ohm: 200 watts x 4 chan.
• Bridged: 400 watts x 2 chan.
• 4/3/2 channel operation
• Optional ACR-1 Assignable Remote Level & Preset Control
• Line-level and Speaker-level (high-level) inputs
• 4 balanced preamp inputs
• Signal summing
• Summable active speaker-level inputs (6 channels) for OEM integration
• Line level outputs to daisy chain multiple amplifiers
• 2 assignable preamp outputs
• Maximum Preamp Output: 8.5 V RMS
• AccuBASS Processing
• MILC Source Clip Detection - Maximized Input Level Control:
• assures the input signal avoids clipping and distortion
• Input Voltage Range: 250mV - 8V RMS
• GTO Signal Sense
• Premium OEM Integration
• Solid One-Piece Aluminum Chassis
• Adjustable Linkwitz-Riley Alignment crossovers: 30 - 300 Hz
• PFM Subsonic Filter: 32Hz
• Fuse Rating: 40A x 2
• Signal-to-Noise Ratio: 102dBa
• Total Harmonic Distortion: <0.1%
• Frequency Response: 10 Hz - 30 kHz
• Dimensions: 9"W x 7.95"D x 2.1"H
• 5 Year Manufacturer's Warranty
