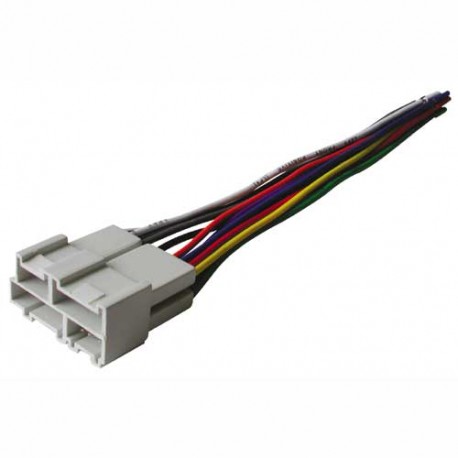

GWH344

In addition, because you do not have to cut your OE radio plug off, the GWH-344 allows you to reinstall your factory receiver if necessary. A great example is if you sold your car, but wanted to keep your after-market radio and re-install your factory stereo receiver.

• Plugs into car harness at radio
• Power/4-Speaker
• 21-Pin plug
• Used for Installing an Aftermarket Receiver to factory plug
• Allows for the installation of an aftermarket radio using the existing factory wiring and connectors
• No need to cut or splice in factory wiring
• Compatible with select 1988-2002 GM Vehicles

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)

• Buick:
• 1988 - 1996 Century
• 1988 - 1990 Electra
• 1988 - 1994 LeSabre
• 1988 - 1994 Regal
• 1986 - 1995 Riviera
• 1991 - 1994 Roadmaster
• 1988 - 1989 Skyhawk
• 1987 - 1995 Skylark
• Cadillac:
• 1988 - 1991 Deville
• 1988 - 1991 El Dorado
• 1999 - 2002 Escalade
• 1988 - 1993 Fleetwood
• 1988 - 1994 Sedan Deville
• 1988 - 1991 Seville
• Chevrolet:
• 1991 - 2005 Astro
• 1988 - 1997 Beretta
• 1992 - 1994 Blazer
• 1988 - 2002 1500, 2500, 3500 Full-Size Truck
• 1990 - 2002 Camaro
• 1991 - 1997 Caprice
• 1991 - 1999 Cavalier
• 1990 - 2002 Corvette
• 1994 - 1996 Impala
• 1997 - 2000 Malibu
• 1995 - 1999 Monte Carlo
• 1990 - 2002 S-10
