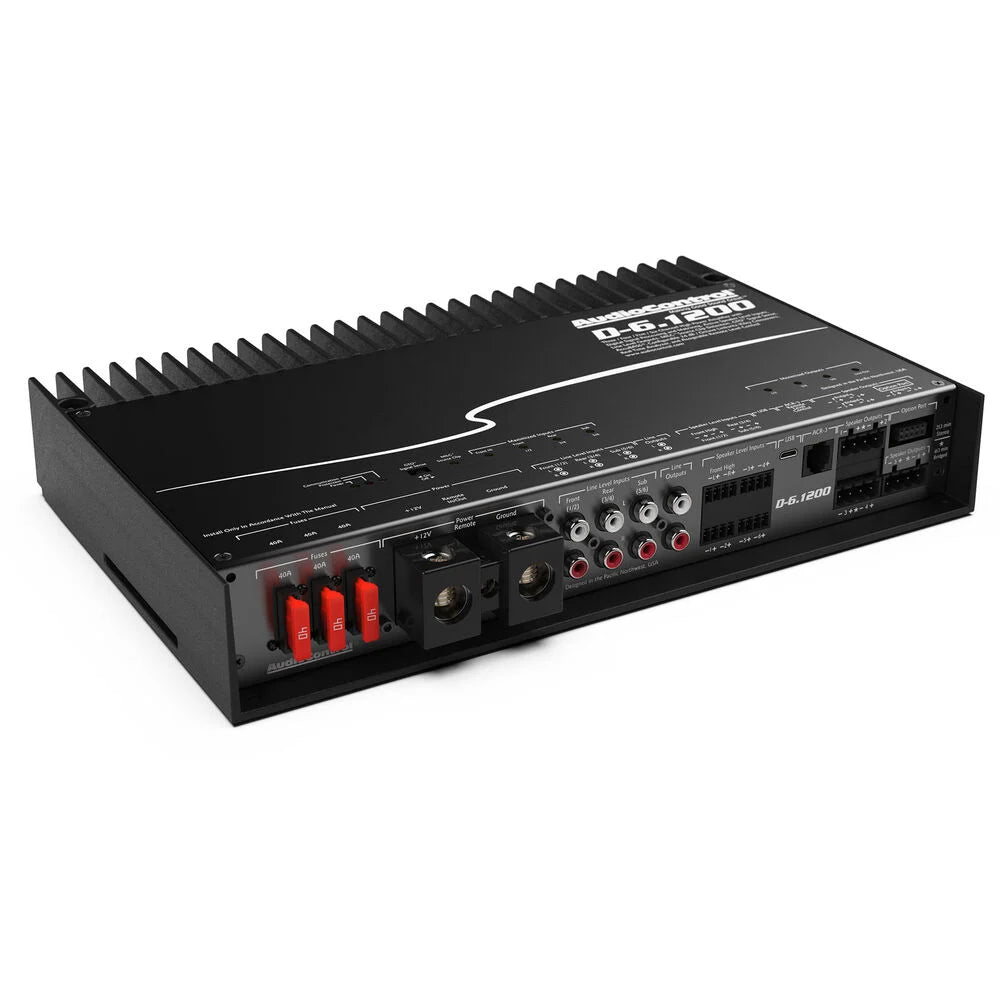

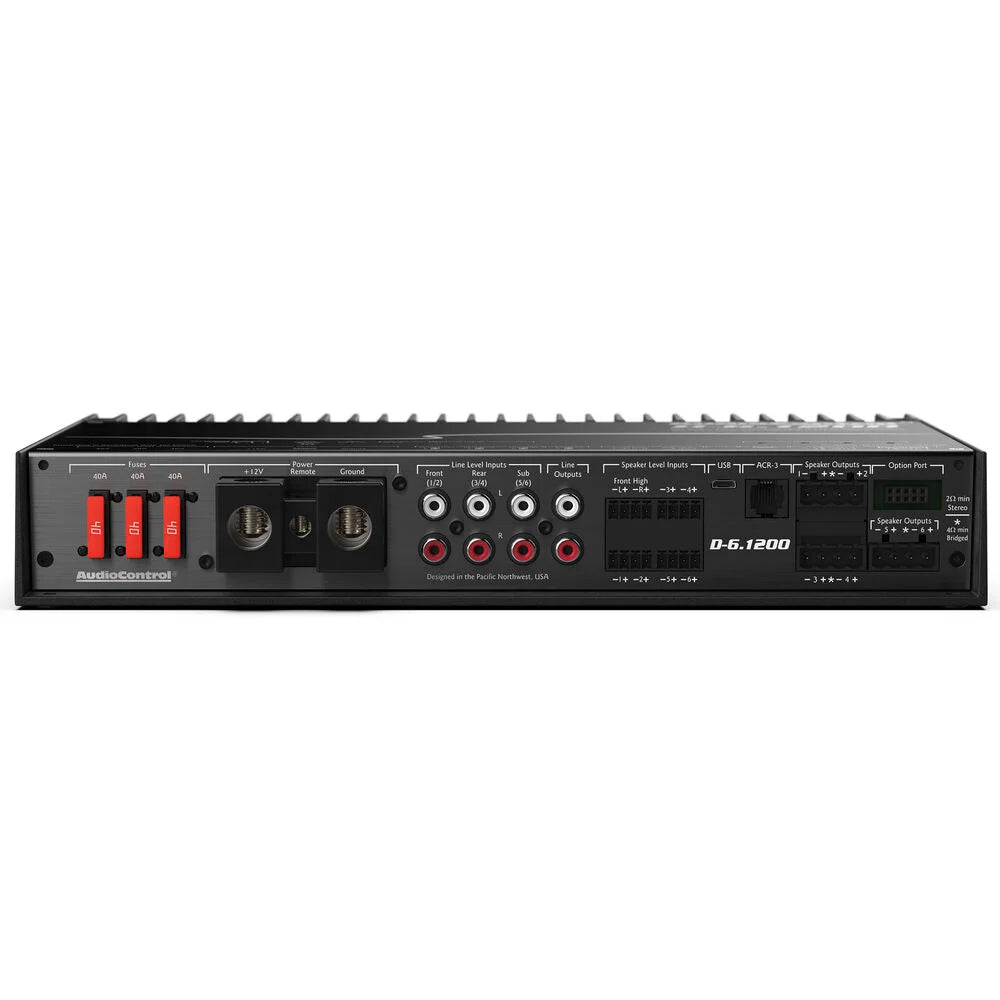

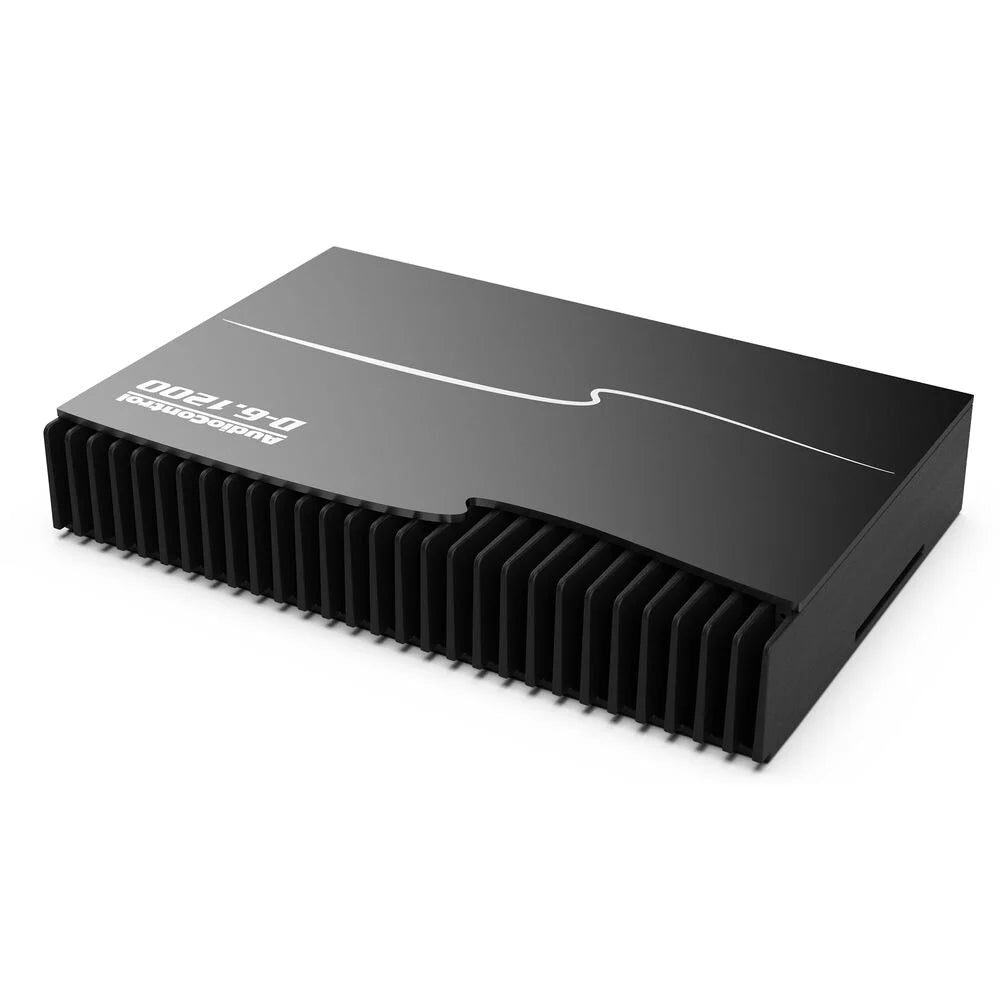

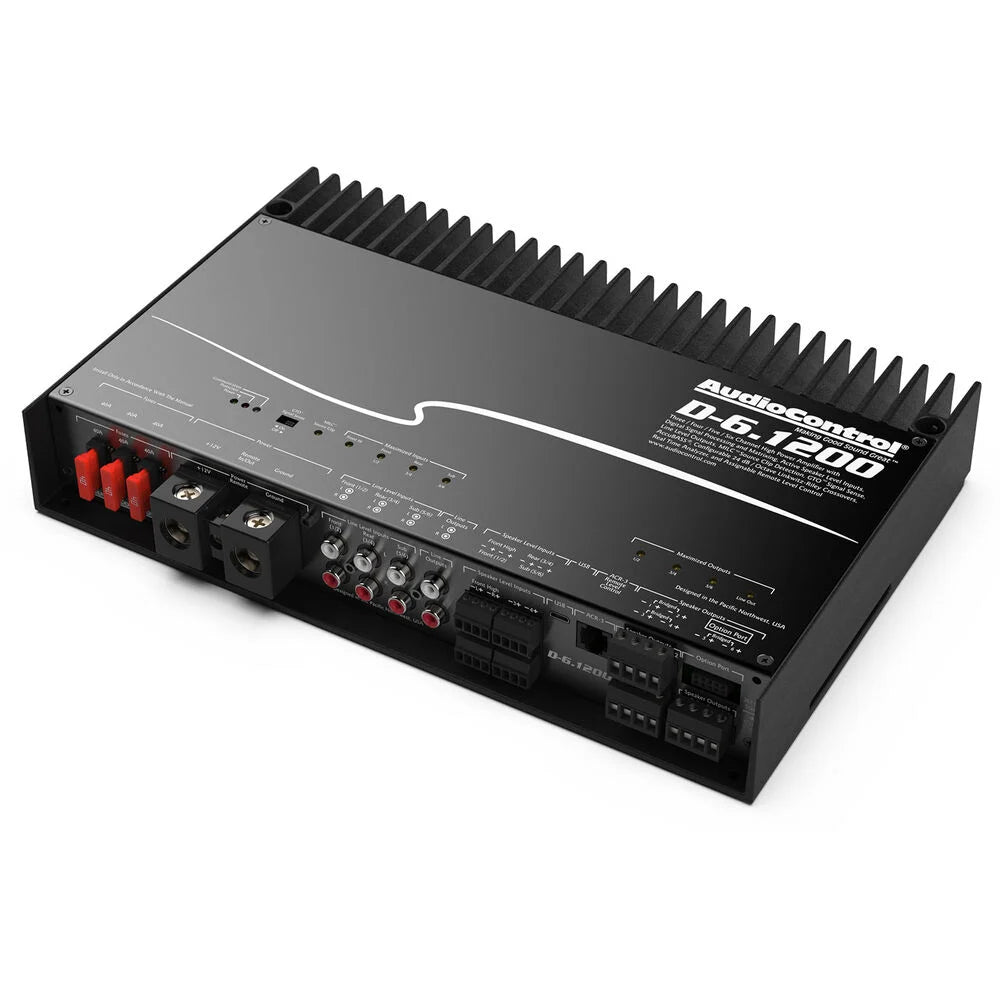

D-6.1200

AudioControl has paired our award winning amplifier technology with our powerful Matrix DSP into the D-6.1200. This single-unit solution provides unprecedented power and tuning flexibility when you require audio perfection from your factory or aftermarket sound system.The D-6.1200 features active speaker level inputs, line-level inputs and outputs plus, using AudioControl’s DM Smart DSP app gives you complete control over all features including 30 bands of equalization, signal delay, input delay, polarity and AudioControl proprietary features like AccuBASS®, GTOTM Signal Sense, and MILCTM plus integrated input and output RTA’s.

The built in Option Port on the D-6.1200 is the future of car audio and will allow hi-res streaming directly into the DSP. It also opens up future proprietary connections for additional inputs, controllers and interface solutions.Perfect for OEM integration and aftermarket builds, the D-6.1200 packs power and intelligent flexibility into one beautiful cast aluminum chassis.

Provides Great Performance

6-Channel DSP Matrix Amplifier with ACCUBASS / GTO Signal Sensing / Maximum Input Level Control / Aluminum Chassis / 2 Preamp Outputs / 30 Band EQ / DM Smart DSP App / ACR-3 Remote

DM Smart DSP

Connect your laptop to the D-4.800 using AudioControl’s DM Smart DSP app, a fully featured Matrix DSP Interface designed to give you instant and clear control over every aspect of your processor.

Route any input to any output, adjust gain, delay and polarity then precisely tune the D-4.800 using a 30 band EQ. High-pass, low-pass and band-pass can be set up for any output using 12 or 24 dB/octave Linkwitz-Riley crossovers.

For OEM integration, take advantage of the input and output RTAs, available for every input and output, to easily identify and sum factory speaker signals.

With a clear GUI and intuitive workflow, AudioControl’s DM Smart DSP app will take the guesswork out of tuning your system to your exact specifications.

• Audiocontrol D-6.1200 D Series
• Class-D FullRange 4-Ohm Stable 6-Channel Amplifier
• RMS Power Rating:
• 4 ohms: 125 watts x 6 chan.
• 2 ohms: 200 watts x 6 chan.
• 1 ohm: ------------N/A------------
• Bridged, 4 ohms: 400 watts x 3 chan.
• 30-Band Graphic EQ, parametric filters, phase correction
• AccuBass Bass Processing
• MILC (Maximum Input Level Control) LED Optimization
• Octave Linkwitz-Riley Crossovers
• Assignable Remote Level Control
• CEA-2006 Compliant Amplifier
• 6 channel operation
• Frequency Response: 20 - 24000 Hz
• Total Harmonic Distortion (THD): < 0.1%
• Variable high-pass filter: 20 - 20000Hz, 24 dB/octave
• Variable low-pass filter: 20 - 20000Hz, 24 dB/octave
• Subsonic filter: 32 Hz , 24 dB/octave
• Variable Bass Boost: 0 to +12 dB bass boost at 50 Hz
• Fuse Rating: 40 A x 3
• Signal to Noise Ratio: 102 dBA
• Dash Remote Sold Separately:
• Dimensions: 12"W x 8"D x 2-1/8"H
• 1-year Manufacturer's Warranty
