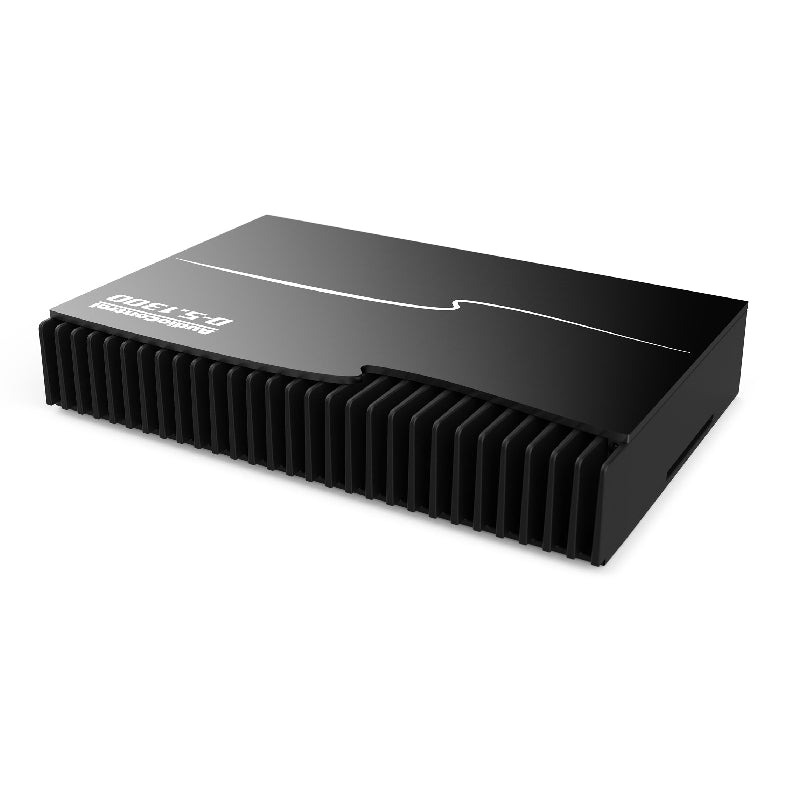

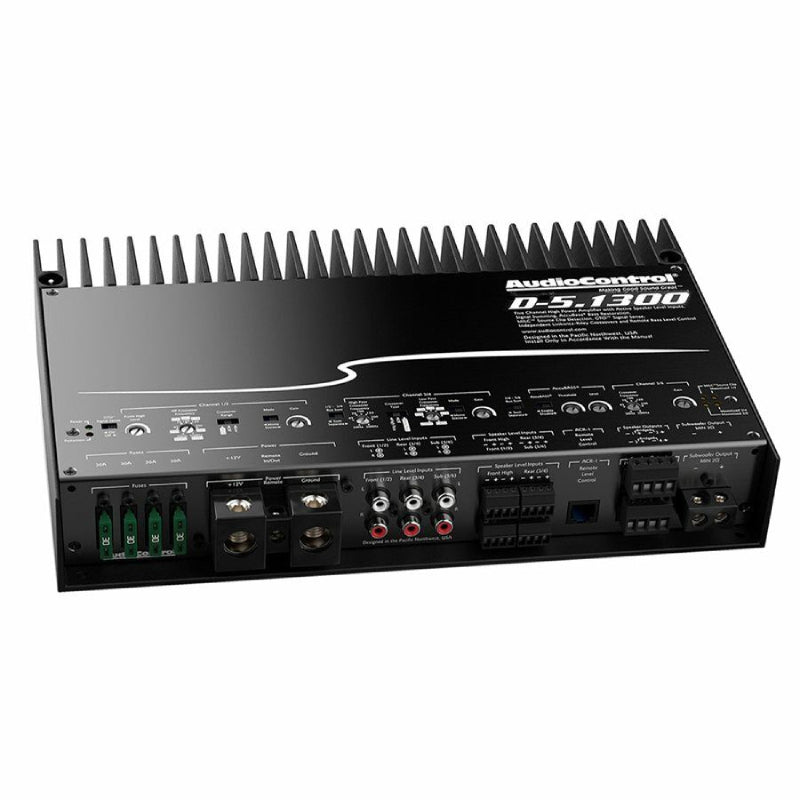

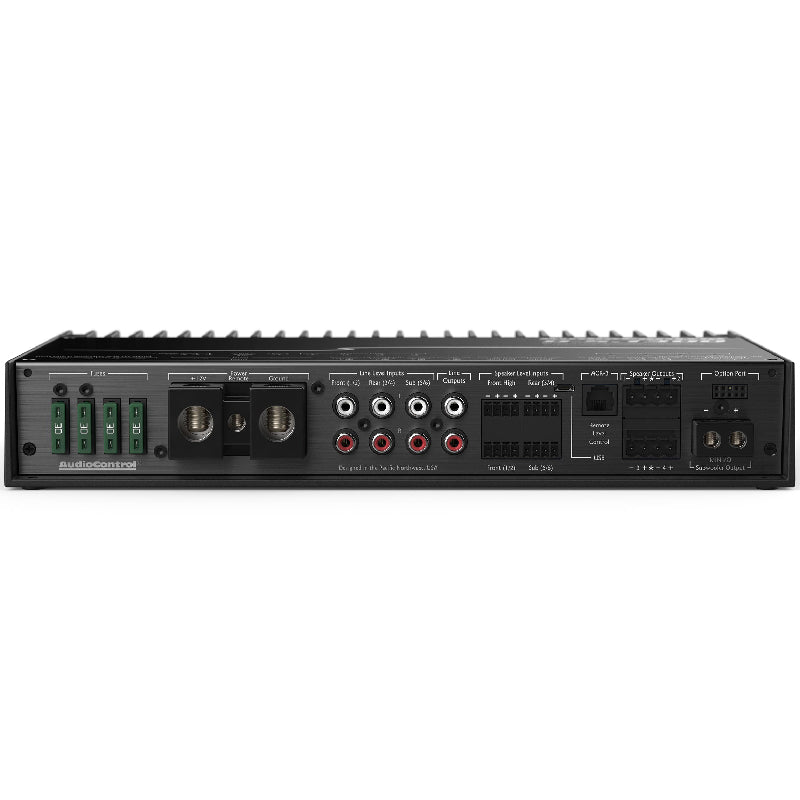

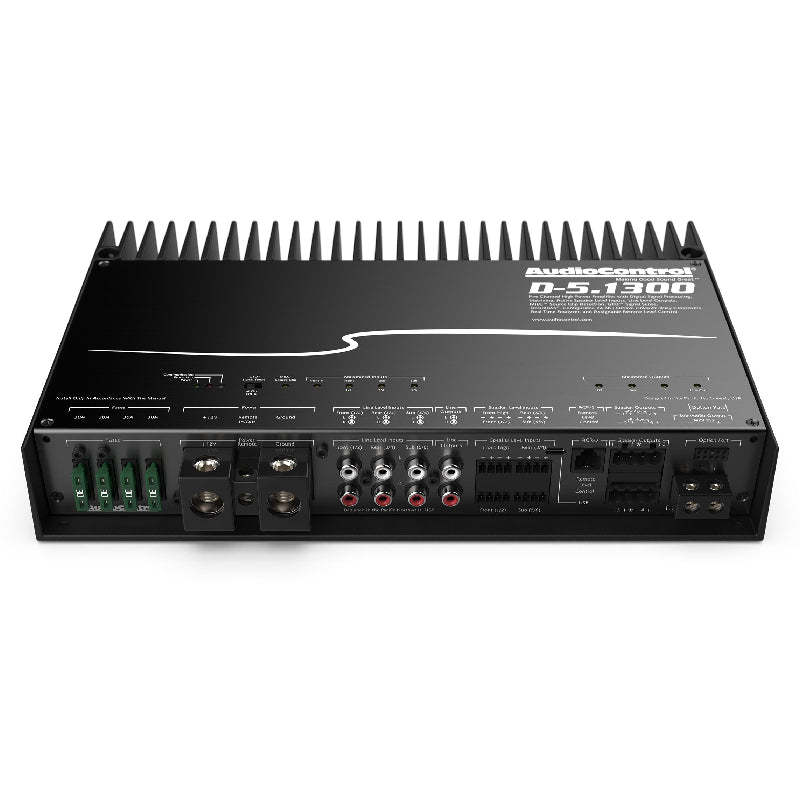

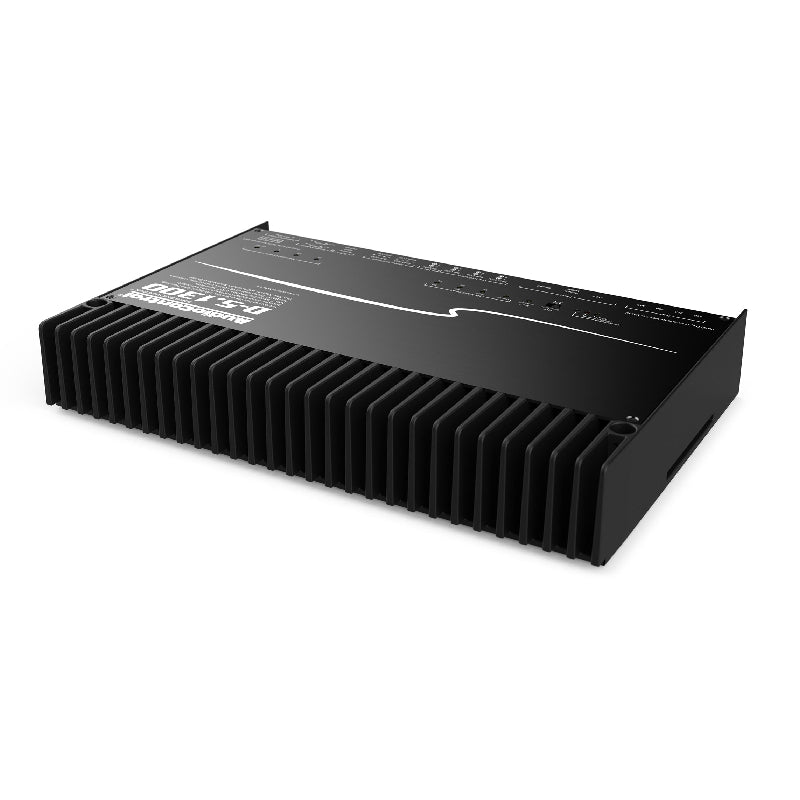

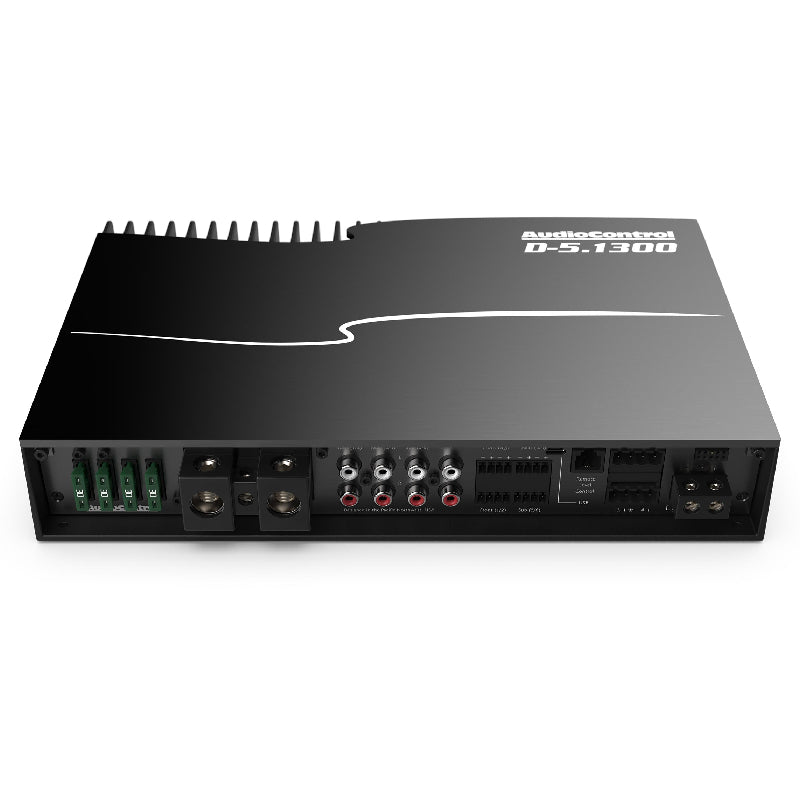

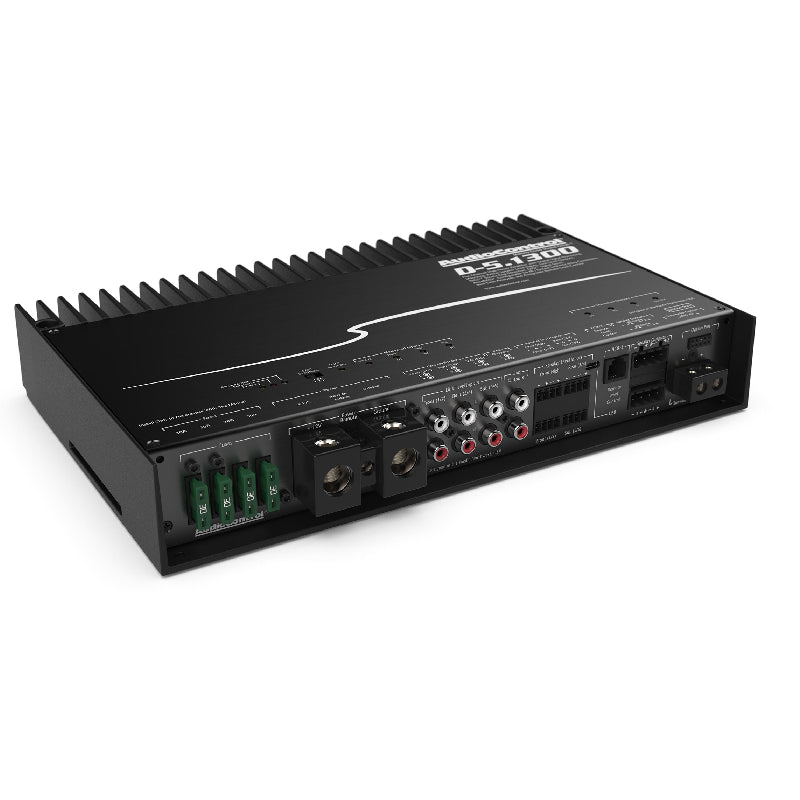

D-5.1300

5-Channels of Sonic Purity and Unprecedented Levels of Power

The D-5.1300 brings five channels of sonic purity and unprecedented levels of power to a complete range of multi-channel and subwoofer amplifiers from AudioControl. Featuring eight active speaker level inputs, six line level inputs, the DSP-driven D-5.1300 features independent crossovers, 30 band EQ with auto EQ, signal summing, signal delay, built in RTAs, and AccuBASS. Integrate seamlessly with your OEM or aftermarket sound system with this single-amp solution, which will transform your audio with impressive power levels delivered to your speakers and subs. Add the optional ACR-3 remote for level control.

• Audio Control DSP Matrix D-5.1300
• 4 Ohm 5-Channel Amplifier
• RMS Power Rating:
• 4 ohms: 100 watts x 4 chan. + 300 watts x 1 chan.
• 2 ohms: 200 watts x 4 chan. + 500 watts x 1 chan.
• CEA-2006 Compliant Amplifier
• AccuBASS® Processing
• Built-in DSP
• MILCTM Maximum Input Level Control (Patent Pending)
• GTOTM Signal Sense
• 5/3 channel operation
• Independent Linkwitz-Riley Alignment crossovers
• Summable active speaker-level inputs (8 channels) for OEM integration
• 6 preamp inputs
• PFM Subsonic Filter
• Solid One-Piece Aluminum Chassis
• Input and Output Delay
• Frequency Response: 20 - 20000 Hz
• Total Harmonic Distortion (THD): < 0.1%
• Signal to Noise Ratio:102 dB
• Fuse Rating: 30 A x 4
• Dimensions: 12"W x 8"D x 2.1"H
• 1-year Manufacturer's Warranty
