D-4.800

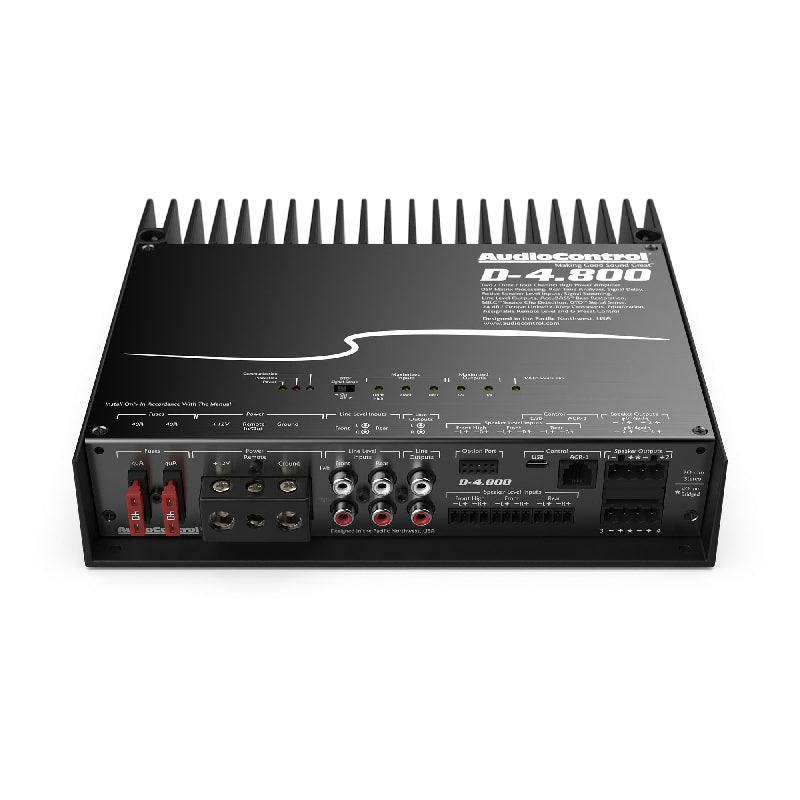

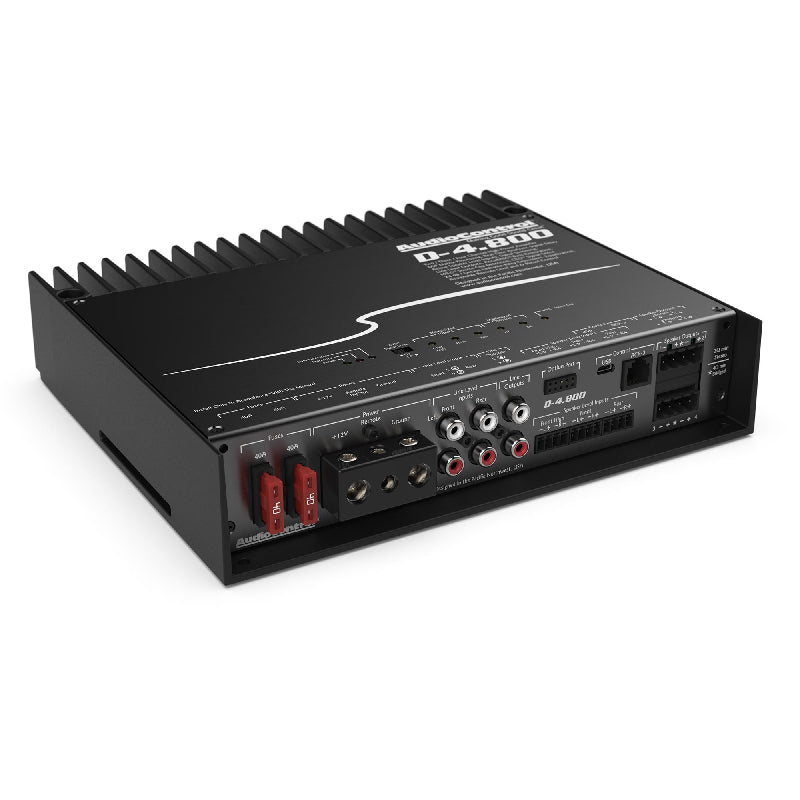

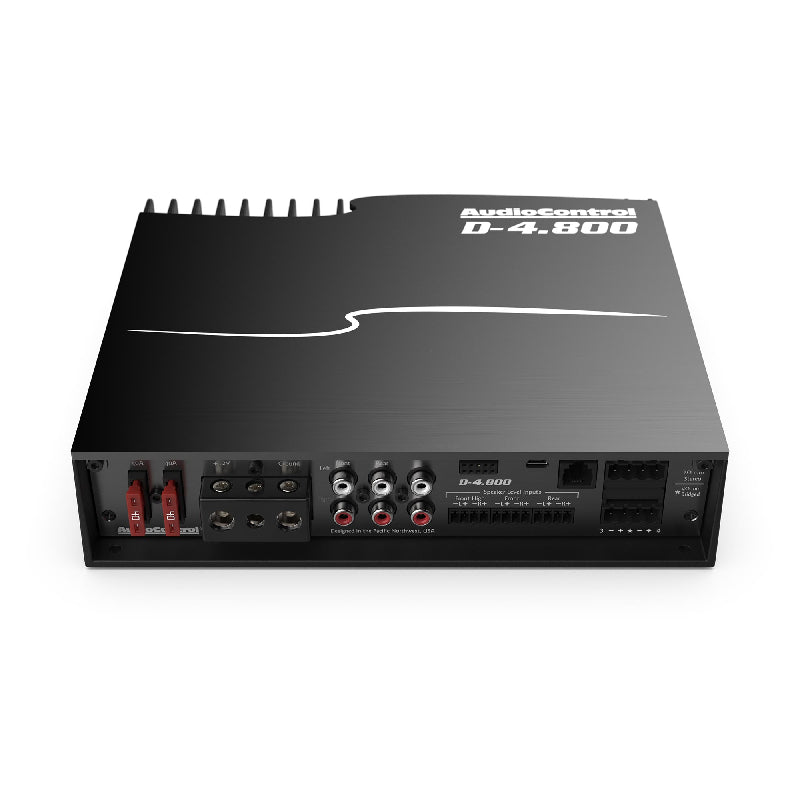

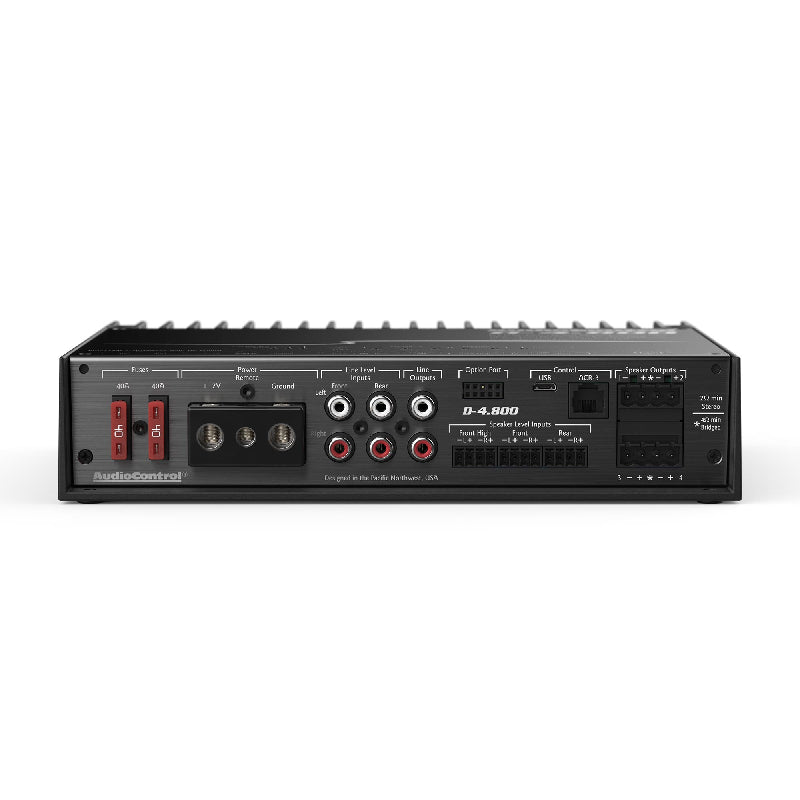

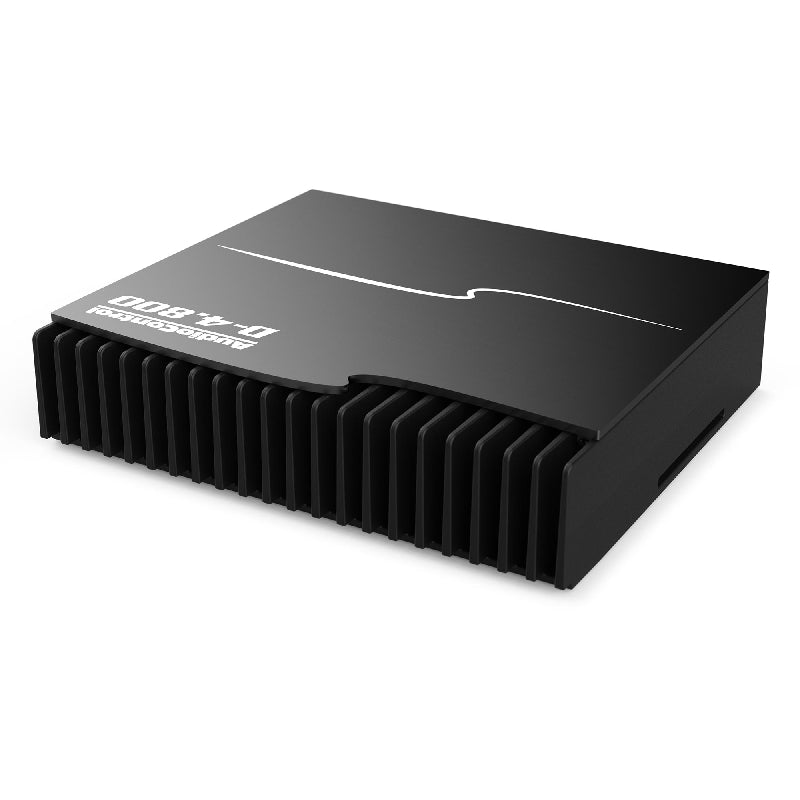

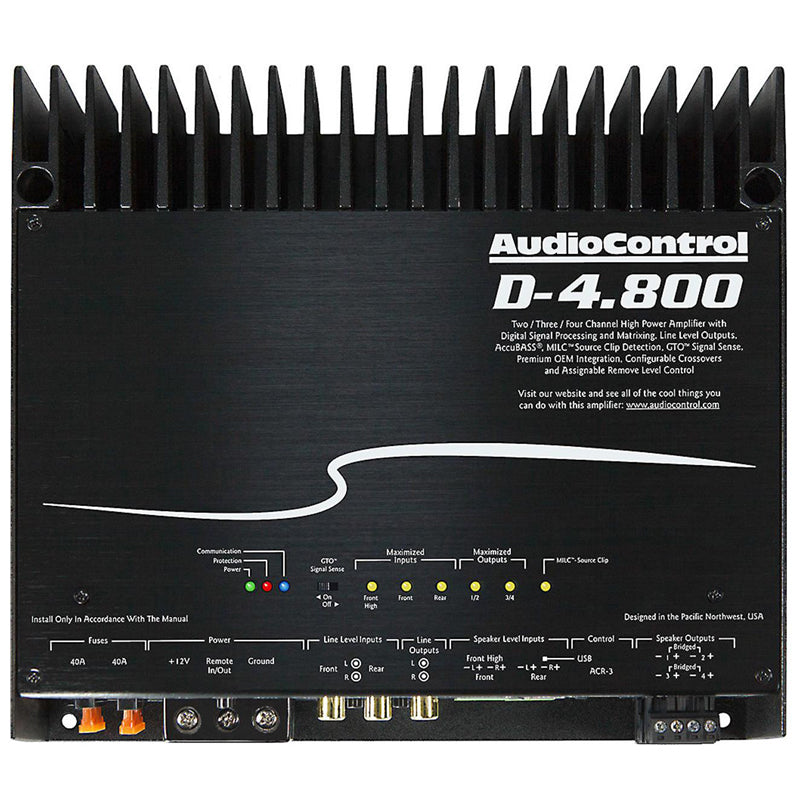

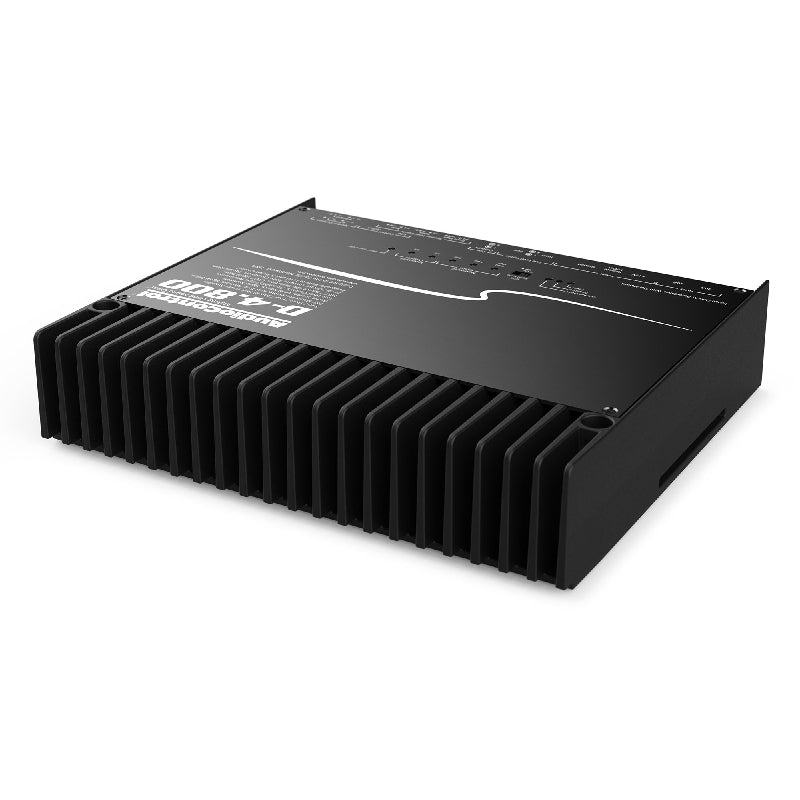

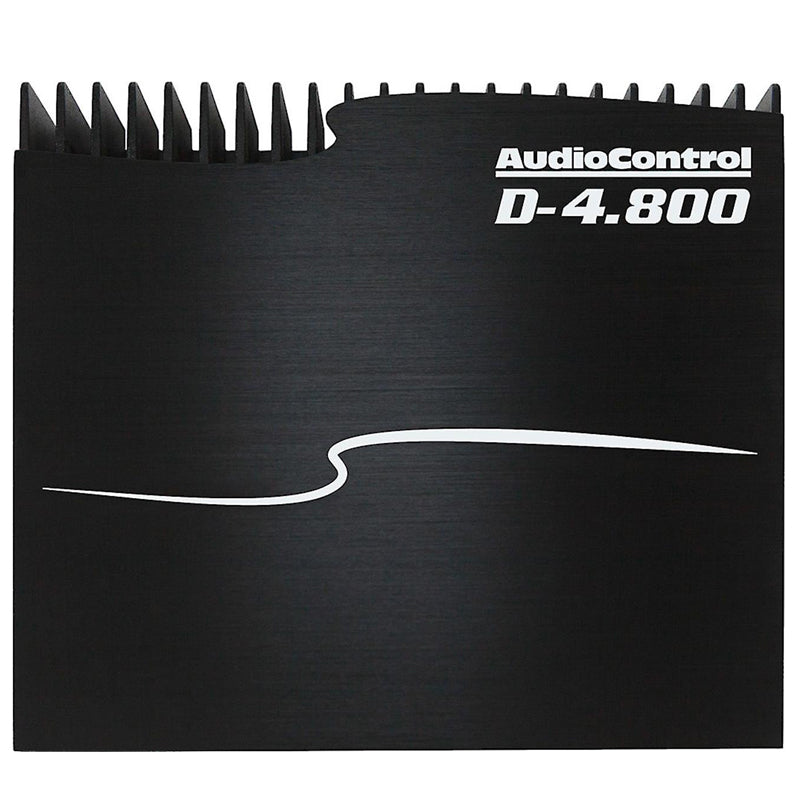

AudioControl 4/3/2-Channel High Power Amplifier

Provides Unprecedented Power and Tuning Flexibility

AudioControl has paired our award winning amplifier technology with our powerful Matrix DSP into the D-4.800. This single-unit solution provides unprecedented power and tuning flexibility when you require audio perfection from your factory or aftermarket sound system.

Active Speaker Level Inputs

The D-4.800 features active speaker level inputs, line-level inputs and outputs plus, using AudioControl’s DM Smart DSP app gives you complete control over all features including 30 bands of equalization, signal delay, input delay, polarity and AudioControl proprietary features like AccuBASS®, GTOTM Signal Sense, and MILCTM plus integrated input and output RTA’s.

Perfect for OEM Integration and Aftermarket Builds

The D-4.800 packs power and intelligent flexibility into one beautiful cast aluminum chassis, perfect for OEM integration and aftermarket builds.

• D-Series 4-Channel Amplifier with Digital Signal Processor
• RMS Power Rating:
• 4 ohms: 125 watts x 4 chan.
• 2 ohms: 200 watts x 4 chan.
• 1 ohm: ------------N/A------------
• Bridged, 4 ohms: 400 watts x 2 chan.
• Allows users to truly optimize the performance of their audio system
• All controls and adjustments accessible through AudioControl's Smart User DSP software inlcluded
• 6 speaker level inputs
• Line-level and Digital audio inputs
• RTA (real-time analyzers) for inputs and outputs
• Provides up to 10 channels of output
• Configure settings such as:
• 30 Bands of graphic equalization
• Signal time-alignment
• Input delay
• Phase Control
• Proprietary AudioControl Feature:
• GTO™ Signal Sensing
• MILC™ Clip Detection
• AccuBASS®
• Low Pass Crossover Frequency: 30 Hz to 300 Hz
• Low/High Pass Slope 24 dB/octave
• Dimensions: 9"W x 8"D x 2-1/8"H
• 5 Year Manufacturer's Warranty
