48CWR122
48CWR122

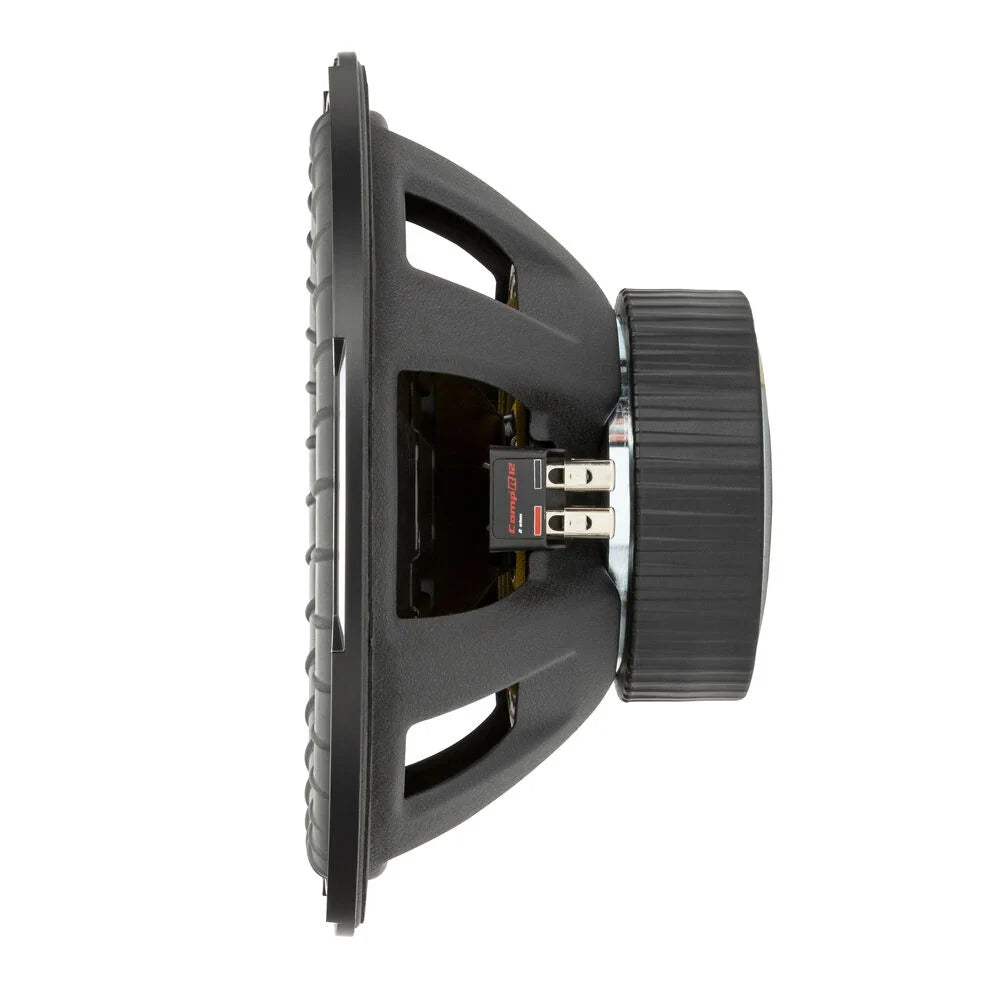

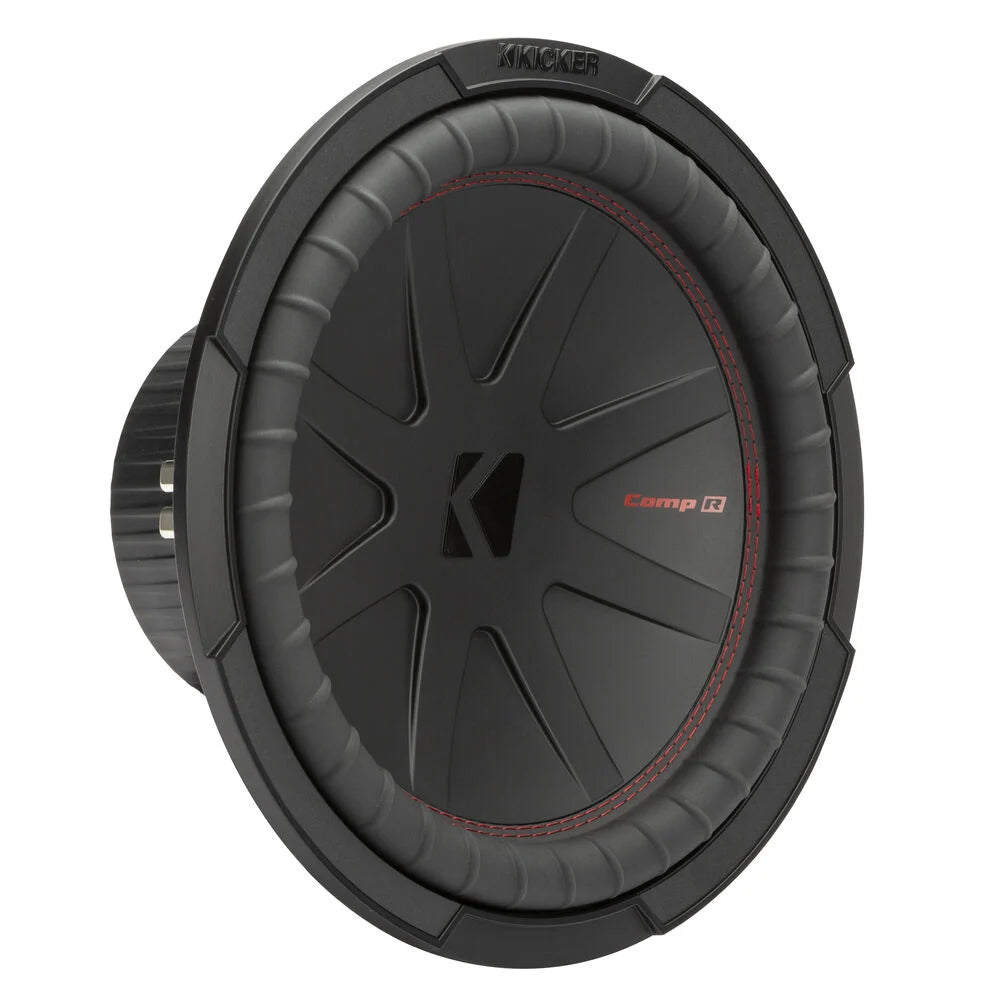

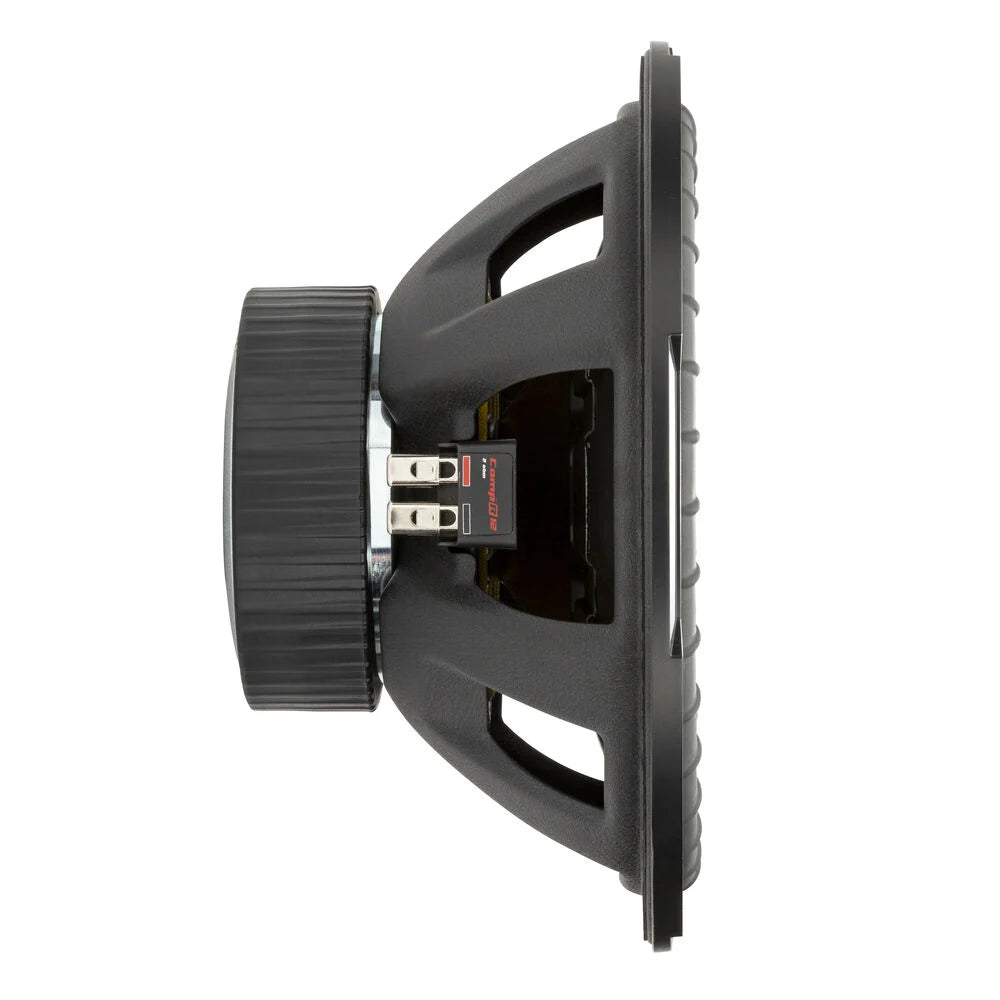

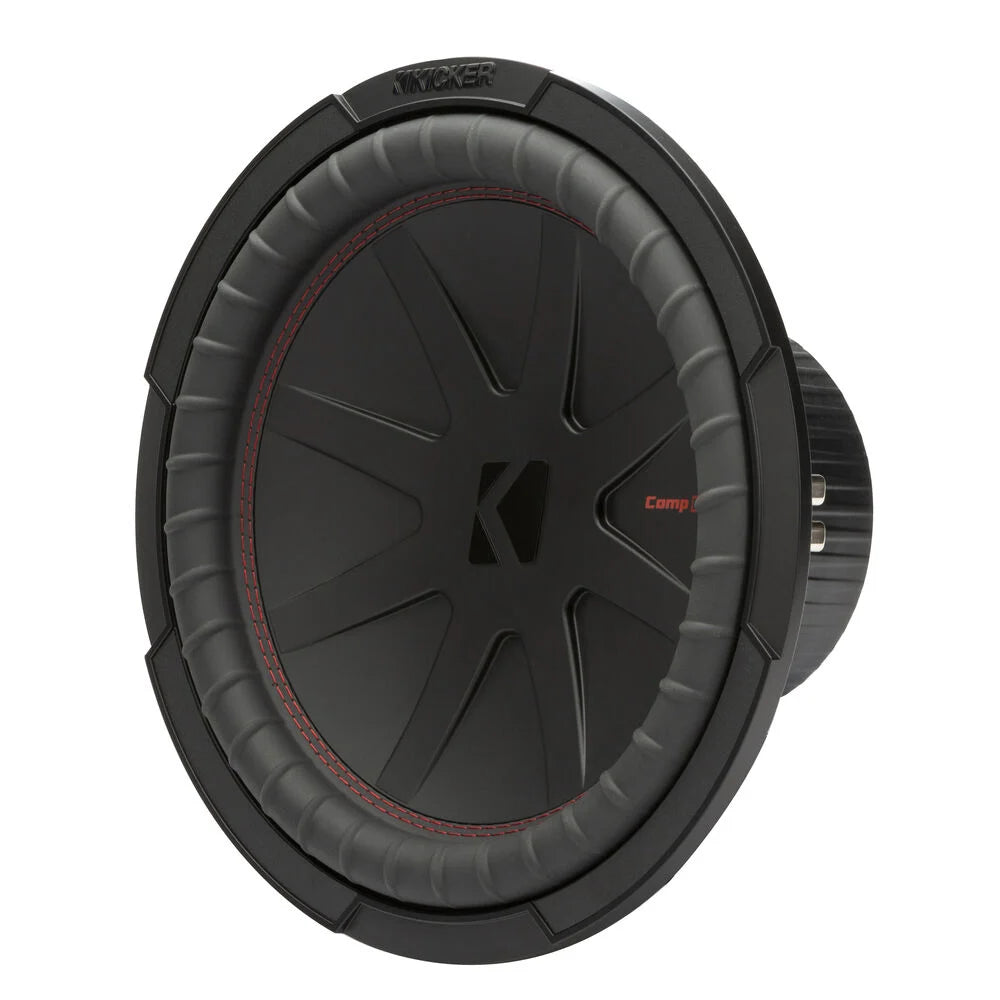

Kicker 48CWR122 - CompR Series 12" subwoofer with dual 2-ohm voice coils
12" CompR 2 Ohm
The CompR 12-Inch Subwoofer is a 2Ω dual voice coil design, making it easy to get the most out of your amp.
An advanced suspension and heat management system helps to keep the bass powerful, deep and consistent. Revolutionary SoloKon™ technology joins the cone to the vented back brace, creating a single integrated unit that both cools the motor and eliminates distortion.
To make our subs even more reliable, KICKER engineers developed Forced Air Cooling to help our subs run 25% cooler than before.
The CompR 12-Inch Subwoofer works best with a sealed or ported enclosure and 500 watts of recommended power.
Any way you want it
This Kicker CompR sub will handle up to 500 watts RMS so make sure you have an amplifier that'll do it justice. Its dual 2-ohm voice coils give you more wiring options when setting up your system, and this versatile sub works well in sealed or ported enclosures.
Driver Size | 12 inch |
---|---|
Subwoofer Shape | Round |
Voice coils | Dual voice coil |
Impedance (per voice coil) | 2 ohm |
FS | 30.8 Hz |
QES | 0.588 |
QMS | 13.5 |
QTS | 0.564 |
RE | 3.77 ohm |
VAS | 2.06 ft3 |
Xmax (millimeters) | 14 |
Sensitivity | 86.9 |
Frequency Response | 25 Hz - 500 Hz |
Sub enclosure type | Banpass, Ported / Vented, Sealed |
Power Handling RMS | 501 - 750 Watts |
Power Handling Peak | 1,000 watts |
Shallow Mount Subwoofer | No |
Mounting Depth | 5.75 Inches |
Cutout Dimensions | 11.00 Inches |
Sealed Enclosure Recommended Size | 1.5 |
Ported Enclosure Recommended Size | 2 |
Color | Dark Grey |
