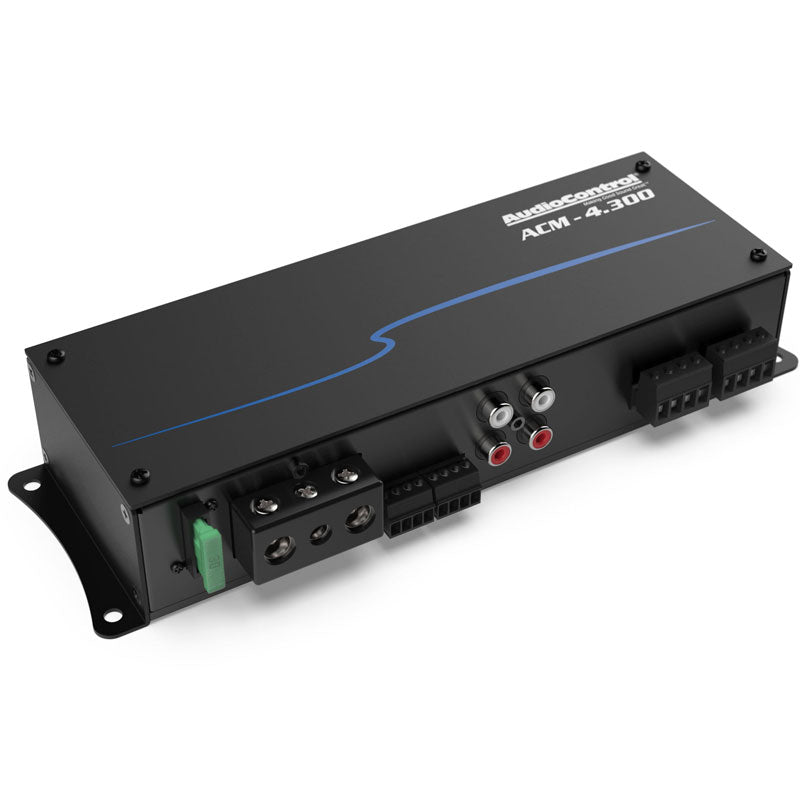

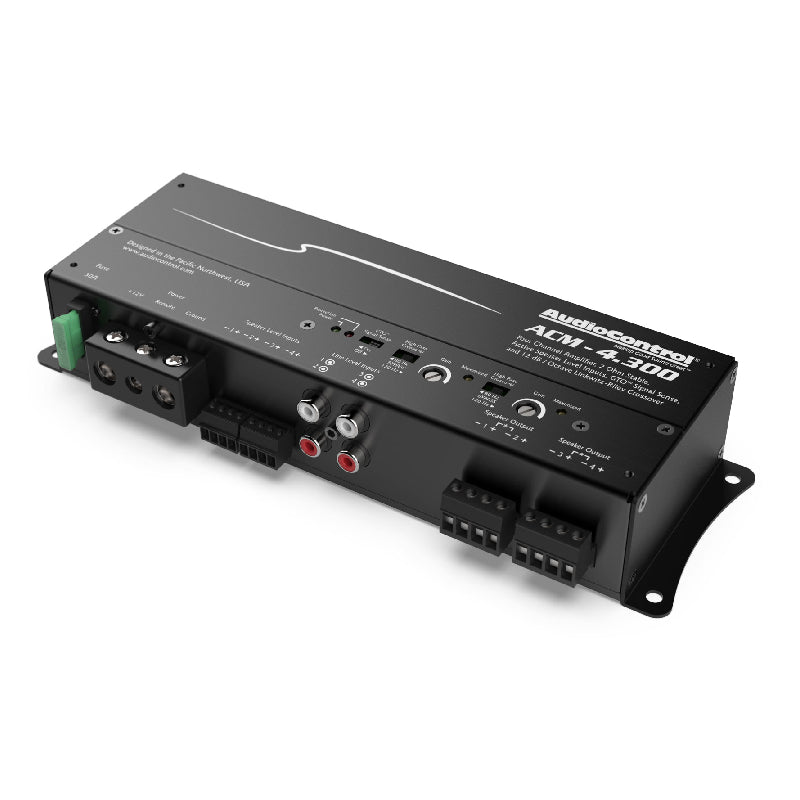

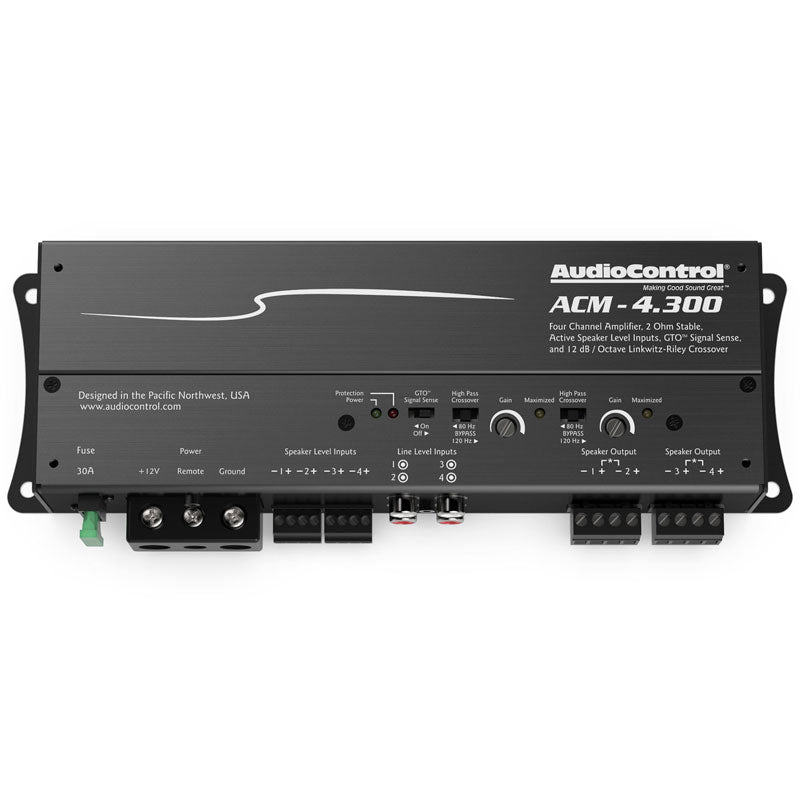

ACM-4.300

Making Good Sound Great

ACM series amplifiers by AudioControl are the perfect blend of power and features for car audio systems from mild to wild. Compact size, high power and the ability to help integrate with factory stereo systems are features that assure “Making Good Sound Great” can happen in any installation.

Flexible Mounting Options

Reversible cover plates allow flexible mounting options when paired with AudioControl DM Series Processors or when using multiple ACM series amplifiers in confined spaces. Once again AudioControl comes to the rescue combining features and benefits needed to assure audio euphoria in an automotive setting.

• AudioControl ACM Series ACM-4.300
• Class-D 2 ohm Stable 4-Channel Amplifier
• RMS Power Rating:
• 4 ohms: 50 watts x 4 chan.
• 2 ohms: 175 watts x 4 chan.
• 4 ohms, Bridged: 150 W x 2 chan.
• Small footprint for flexible mounting options
• GTO Signal Sense turns on the amp when signal is detected from the factory amp or stereo
• Patented AccuBASS processing restores bass
• Pulse Width Modulated MOSFET power supply
• LED power (green) and protect (red) indicators
• Soft start turn-on
• Mono channel operation
• Speaker-level (high-level) inputs
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink
• Input sensitivity:
• Low level: 500 mV - 6V
• High level: 3V - 40V
• Frequency Response: 10 - 22000Hz
• Total Harmonic Distortion (THD): <.01%
• Signal to Noise Ratio: 102 dB
• Linkwitz-Riley Crossover
• High pass crossover selectable at 80Hz or 120Hz
• Fuse Rating: 30A x 1
• Dimensions: 9.4"W x 3"L x 1.75"H
• 5 Year Manufacturer's Warranty
